BU-4150003MM750
ActiveMueller Electric Co

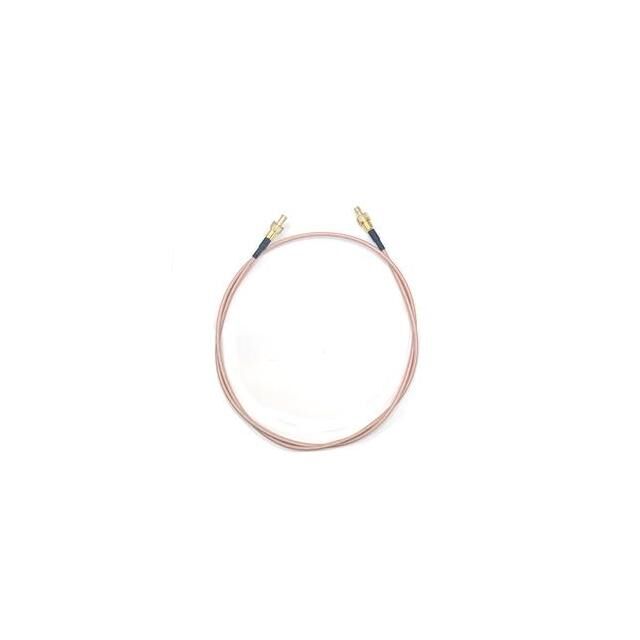

RF / COAXIAL CABLE ASSEMBLY, SMB PLUG TO SMB PLUG, RG316, 50 OHM, 29.6 ", 750 MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
BU-4150003MM750
ActiveMueller Electric Co
RF / COAXIAL CABLE ASSEMBLY, SMB PLUG TO SMB PLUG, RG316, 50 OHM, 29.6 ", 750 MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | BU-4150003MM750 |
|---|---|
| 1st Connector | SMB Plug |
| 1st Connector Mounting Type | Free Hanging (In-Line) |
| 1st Contact Gender | Male |
| 2nd Connector | SMB Plug |
| 2nd Connector Mounting Type | Free Hanging (In-Line) |
| 2nd Contact Gender | Male |
| Cable Impedance | 50 Ohms |
| Cable Type | RG-316 |
| Color | Tan |
| Frequency - Max [Max] | 4 GHz |
| Length | 29.53 " |
| Length | 750 mm |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -65 ░C |
| Overall Impedance | 50 Ohms |
| Style | SMB to SMB |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
BU-4150003MM750
Cable Assembly Coaxial SMB to SMB RG-316 29.53" (750.00mm)
