02231100
ActiveBopla Enclosures
BOX PLASTIC 6.3"L X 3.15"W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
02231100
ActiveBopla Enclosures
BOX PLASTIC 6.3"L X 3.15"W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 02231100 |
|---|---|
| Area (L x W) | 128 cm˛ |
| Area (L x W) | 19.8 in˛ |
| Color | Gray, Clear Cover/Door |
| Container Type | Box |
| Design | Cover Included |
| Features | Watertight |
| Height [z] | 85 mm |
| Height [z] | 3.346 in |
| Material | Plastic, Polycarbonate |
| Material Flammability Rating | UL94 V-2 |
| Ratings | NEMA 4X, UL-508, IP66 |
| Size / Dimension [x] | 160 mm |
| Size / Dimension [x] | 6.299 " |
| Size / Dimension [y] | 80 mm |
| Size / Dimension [y] | 3.15 in |
| Weight | 276.69 g |
| Weight | 0.61 lb |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 34.40 | |
Description
General part information
02231100

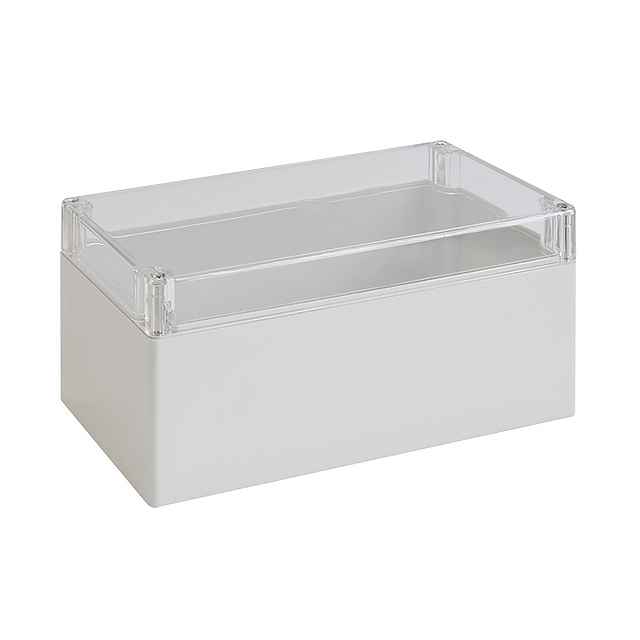

Box Plastic, Polycarbonate Gray, Clear Cover/Door Cover Included 6.299" L x 3.150" W (160.00mm x 80.00mm) X 3.346" (85.00mm)
