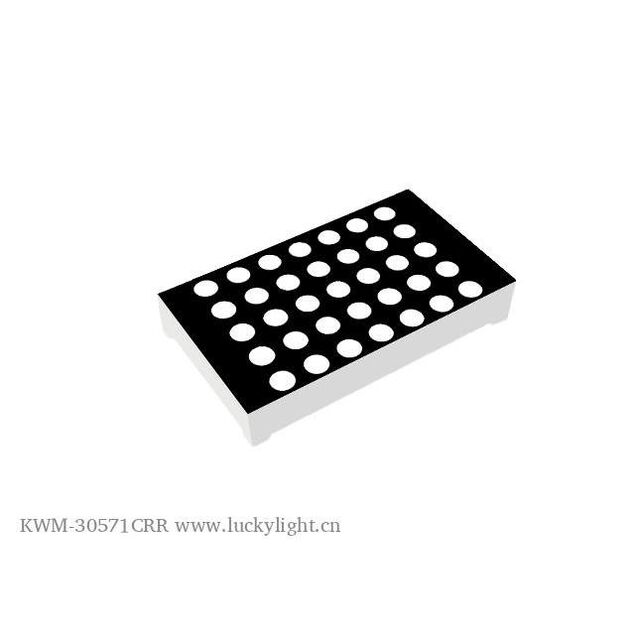

KWM-30571CRR
ActiveLuckylight
1.54INCH, DEEP RED, 57 DOT MATR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
KWM-30571CRR
ActiveLuckylight
1.54INCH, DEEP RED, 57 DOT MATR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | KWM-30571CRR |
|---|---|
| Color | Red |
| Configuration [x] | 5 |
| Configuration [y] | 7 |
| Interface | Parallel |
| Internal Connection | Common Anode Column, Common Cathode Row |
| Millicandela Rating [Max] | 18 mcd |
| Millicandela Rating [Min] | 9 mcd |
| Size / Dimension [x] | 39 mm |
| Size / Dimension [x] | 1.54 in |
| Size / Dimension [y] | 22.9 mm |
| Size / Dimension [y] | 0.9 " |
| Size / Dimension [z] | 0.32 " |
| Size / Dimension [z] | 8 mm |
| Voltage - Forward (Vf) (Typ) | 2 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Retail Package | 50 | $ 1.50 | |
| 100 | $ 1.30 | |||
| 500 | $ 1.20 | |||
| 2000 | $ 1.09 | |||
Description
General part information
KWM-30571CRR
Dot Matrix Display Module 5 x 7 Common Cathode Row, Common Anode Column Red 2V Parallel 1.54" L x 0.90" W x 0.32" H (39.00mm x 22.90mm x 8.00mm)
