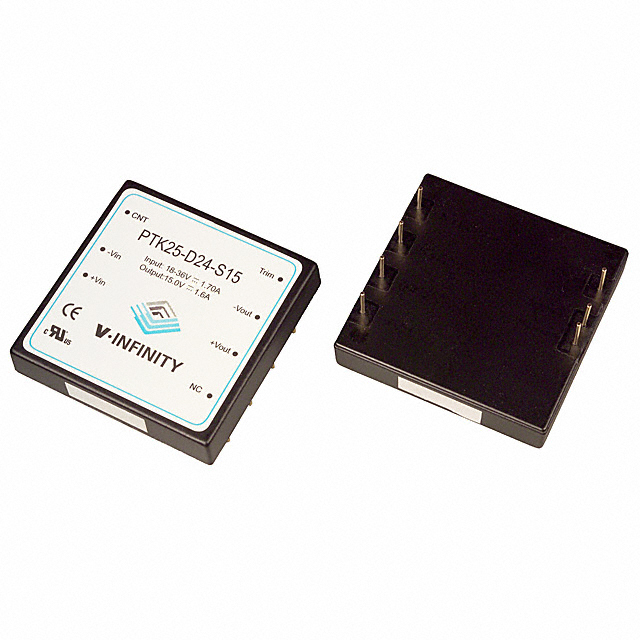

PTK25-D24-S15
ObsoleteCUI Inc.
DC DC CONVERTER 15V 25W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PTK25-D24-S15
ObsoleteCUI Inc.
DC DC CONVERTER 15V 25W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PTK25-D24-S15 |
|---|---|
| Applications | ITE (Commercial) |
| Control Features | Active High, Enable |
| Current - Output (Max) [Max] | 1.6 A |
| Features | OCP, OVP, Remote On/Off |
| Mounting Type | Through Hole |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 71 °C |
| Operating Temperature [Min] | -20 C |
| Package / Case | 8-DIP Module, 7 Leads |
| Power (Watts) | 25 W |
| Size / Dimension [x] | 50.8 mm |
| Size / Dimension [x] | 2 in |
| Size / Dimension [y] | 50.8 mm |
| Size / Dimension [y] | 2 in |
| Size / Dimension [z] | 10.2 mm |
| Size / Dimension [z] | 0.4 " |
| Type | Isolated Module |
| Voltage - Input (Max) [Max] | 36 V |
| Voltage - Input (Min) [Min] | 18 V |
| Voltage - Isolation | 500 V |
| Voltage - Output 1 | 15 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
PTK25-D24-S15
Isolated Module DC DC Converter 1 Output 15V 1.6A 18V - 36V Input
