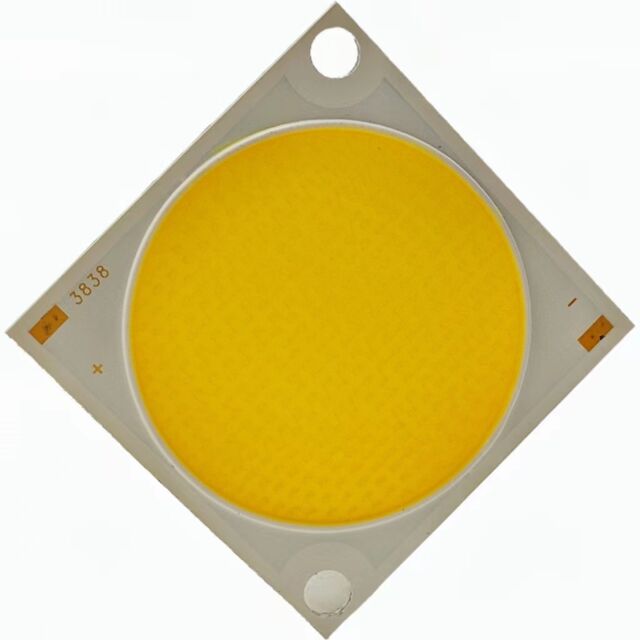

COB3838-XX
ActiveWeilinsen
30W-300W COB LED LIGHT FOR LED M
Deep-Dive with AI
Search across all available documentation for this part.
COB3838-XX
ActiveWeilinsen
30W-300W COB LED LIGHT FOR LED M
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | COB3838-XX |
|---|---|
| CCT (K) [Max] | 5000 K |
| CCT (K) [Min] | 4000 K |
| Color | Neutral, White |
| Configuration | Round |
| Current - Test | 2.25 A |
| Features | Lens - Flat |
| Height [z] | 1.4 mm |
| Lens Type | Flat |
| Light Emitting Surface (LES) [x] | 35.5 mm |
| Light Emitting Surface (LES) [y] | 35.5 mm |
| Lumens/Watt @ Current - Test | 150 lm/W |
| Luminous Flux @ Current/Temperature | 150 lm |
| Size / Dimension [x] | 38 mm |
| Size / Dimension [y] | 38 mm |
| Temperature - Test | 80 °C |
| Type | Chip On Board (COB) |
| Viewing Angle | 120 ° |
| Voltage - Forward (Vf) (Typ) | 50 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Case | 1 | $ 14.00 | |
| 300 | $ 13.57 | |||
| 500 | $ 12.85 | |||
| 1000 | $ 12.14 | |||
Description
General part information
COB3838-XX
LED Lighting COBs Engines Modules Chip On Board (COB) - White, Neutral Round
Documents
Technical documentation and resources
No documents available
