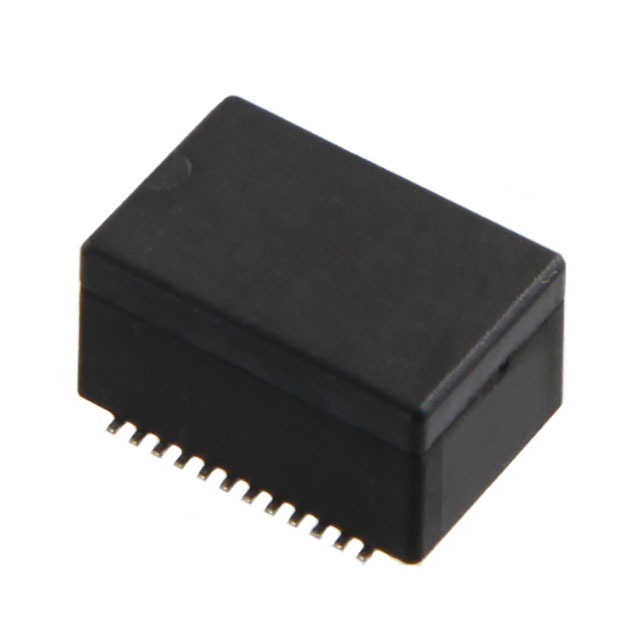

XFGID10018
ActiveXFMRS
LAN, 10/100/1000 BASE-T, SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
XFGID10018
ActiveXFMRS
LAN, 10/100/1000 BASE-T, SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | XFGID10018 |
|---|---|
| Height - Seated (Max) [Max] | 8.38 mm |
| Height - Seated (Max) [Max] | 0.33 in |
| Inductance | 300 µH |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Size / Dimension [x] | 15.24 mm |
| Size / Dimension [x] | 0.6 in |
| Size / Dimension [y] | 0.43 in |
| Size / Dimension [y] | 10.92 mm |
| Transformer Type | LAN 10/100/1000 Base-T |
| Turns Ratio - Primary:Secondary | 1:1CT |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
XFGID10018
300µH LAN 10/100/1000 Base-T Pulse Transformer 1:1CT Surface Mount
Documents
Technical documentation and resources
