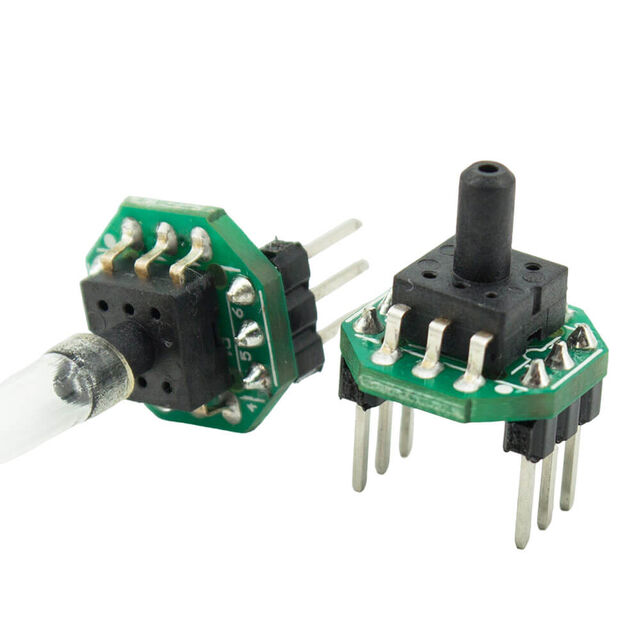

XGZP6847A100KPGN33
ActiveCFSensor
PRESSURE SENSOR 14.5PSI(-100~0KP
Deep-Dive with AI
Search across all available documentation for this part.
XGZP6847A100KPGN33
ActiveCFSensor
PRESSURE SENSOR 14.5PSI(-100~0KP
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | XGZP6847A100KPGN33 |
|---|---|
| Accuracy | 2 % |
| Applications | Board Mount |
| Features | Temperature Compensated, Amplified Output |
| Maximum Pressure | -14.5 PSI |
| Maximum Pressure | -100 kPa |
| Mounting Type | Through Hole |
| Operating Pressure [Max] | 0 kPa |
| Operating Pressure [Max] | 0 PSI |
| Operating Pressure [Min] | -1 bar |
| Operating Pressure [Min] | -14.5 PSI |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -20 C |
| Output [Max] | 2.7 V |
| Output [Min] | 0.2 V |
| Output Type | Analog |
| Package / Case | 6-DIP |
| Port Size | Male - Tube |
| Port Size | 3 mm, 0.12 " |
| Port Style | Barbless |
| Pressure Type | Gauge |
| Supplier Device Package | 6-DIP |
| Voltage - Supply | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 5 | $ 7.20 | |
| 10 | $ 6.90 | |||
| 25 | $ 6.60 | |||
| 100 | $ 6.30 | |||
| 500 | $ 5.36 | |||
Description
General part information
XGZP6847A100KPGN33
Pressure Sensor -14.5PSI ~ 0PSI (-100kPa ~ 0kPa) Gauge Male - 0.12" (3mm) Tube 0.2 V ~ 2.7 V 6-DIP
Documents
Technical documentation and resources
No documents available
