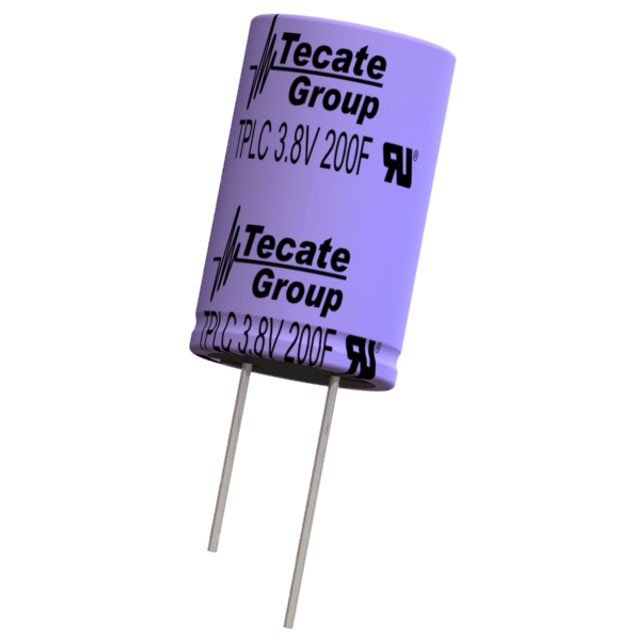

TPLC-3R8/200MR16X25
ActiveTecate Group
CAP LITH HYBRID 200F 3.8V T/H
Deep-Dive with AI
Search across all available documentation for this part.
TPLC-3R8/200MR16X25
ActiveTecate Group
CAP LITH HYBRID 200F 3.8V T/H
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | TPLC-3R8/200MR16X25 |
|---|---|
| Capacitance | 200 F |
| ESR (Equivalent Series Resistance) | 70 mOhm |
| Height - Seated (Max) [Max] [z] | 1.063 in |
| Height - Seated (Max) [Max] [z] | 27 mm |
| Lead Spacing | 7.5 mm |
| Lead Spacing | 0.295 in |
| Lifetime @ Temp. | 1000 Hrs |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -15 °C |
| Package / Case | Radial, Can |
| Size / Dimension [diameter] | 0.63 in |
| Size / Dimension [diameter] | 16 mm |
| Termination | PC Pins |
| Tolerance | 20 % |
| Voltage - Rated | 3.8 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 10.20 | |
| 25 | $ 9.18 | |||
| 50 | $ 8.16 | |||
| 100 | $ 7.34 | |||
| 450 | $ 6.78 | |||
| 950 | $ 6.38 | |||
Description
General part information
TPLC-3R8/200MR16X25
200 F (EDLC) Supercapacitor 3.8 V Radial, Can 70mOhm @ 1kHz 1000 Hrs @ 70°C
Documents
Technical documentation and resources
No documents available
