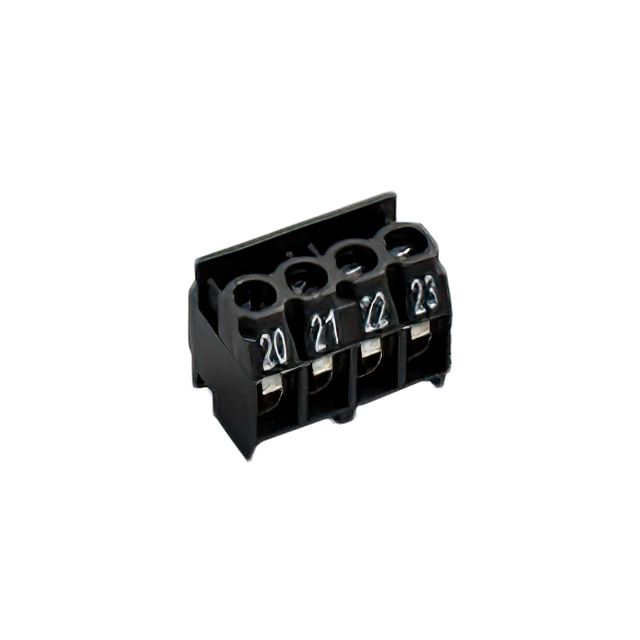

950-FL-DS/04-006
ActiveWECO Electrical Connectors Inc.
PLUG-IN SCREW CONNECTOR SYSTEM F
Deep-Dive with AI
Search across all available documentation for this part.
950-FL-DS/04-006
ActiveWECO Electrical Connectors Inc.
PLUG-IN SCREW CONNECTOR SYSTEM F
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 950-FL-DS/04-006 |
|---|---|
| Color | Gray |
| Contact Material | Brass |
| Contact Mating Finish | Nickel |
| Current - UL | 10 A |
| Housing Material | Polyamide (PA), Nylon |
| Insulation Height | 13 mm |
| Insulation Height | 0.512 in |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Free Hanging (In-Line) |
| Number of Levels | 1 |
| Number of Positions | 4 |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 5 mm |
| Pitch [x] | 0.197 in |
| Plug Wire Entry | 90 ° |
| Positions Per Level | 4 |
| Screw Size | M2.6 |
| Termination Style | Screw - Leaf Spring, Wire Guard |
| Torque - Screw | 0.4 Nm |
| Torque - Screw | 3.5 Lb-In |
| Type | Plug for Unshrouded Header |
| Voltage - UL | 300 V |
| Wire Gauge or Range - AWG [Max] | 26 AWG |
| Wire Gauge or Range - AWG [Min] | 14 AWG |
| Wire Gauge or Range - mm˛ [Max] | 2.5 mm˛ |
| Wire Gauge or Range - mm˛ [Min] | 0.34 mm˛ |
| Wire Strip Length | 6 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 0.42 | |
Description
General part information
950-FL-DS/04-006
4 Position Terminal Block Plug for Unshrouded Header 0.197" (5.00mm) 90° Free Hanging (In-Line)
