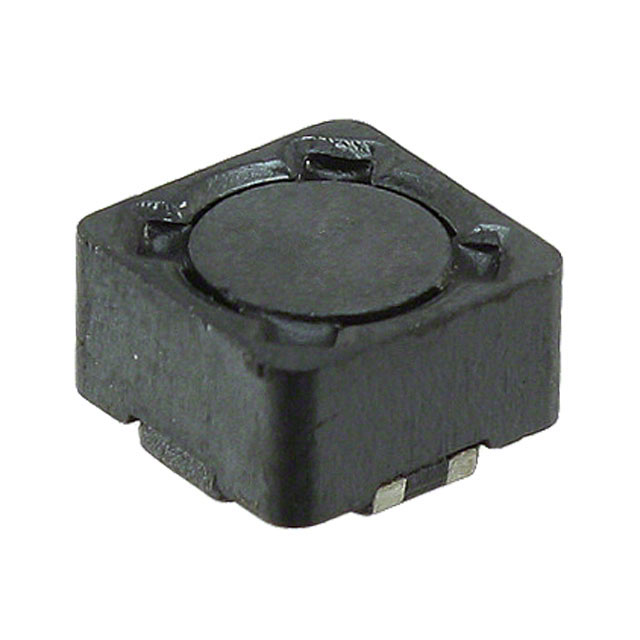

HM78D-755220MLFTR
UnknownTT Electronics/BI Magnetics
INDUCT ARRAY 2 COIL 22UH SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
HM78D-755220MLFTR
UnknownTT Electronics/BI Magnetics
INDUCT ARRAY 2 COIL 22UH SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | HM78D-755220MLFTR |
|---|---|
| Current Rating - Parallel | 1.75 A |
| Current Rating - Series [custom] | 874 mA |
| Current Saturation - Parallel | 2.13 A |
| Current Saturation - Series | 1.07 A |
| DC Resistance (DCR) - Parallel | 92.5 mOhm |
| DC Resistance (DCR) - Series | 371 mOhm |
| Height [diameter] | 0.189 " |
| Height [diameter] | 4.8 mm |
| Inductance - Connected In Series | 86.92 µH |
| Mounting Type | Surface Mount |
| Number of Coils | 2 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Nonstandard |
| Shielding | Shielded |
| Size / Dimension [x] | 0.303 in |
| Size / Dimension [x] | 7.7 mm |
| Size / Dimension [y] | 0.303 in |
| Size / Dimension [y] | 7.7 mm |
| Tolerance | 20 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.36 | |
| 10 | $ 1.15 | |||
| 25 | $ 1.05 | |||
| 50 | $ 0.98 | |||
| 100 | $ 0.82 | |||
| 250 | $ 0.75 | |||
| 500 | $ 0.71 | |||
Description
General part information
HM78D-755220MLFTR
Shielded 2 Coil Inductor Array 86.92 µH Inductance - Connected in Series 22 µH Inductance - Connected in Parallel 92.5mOhm DC Resistance (DCR) - Parallel 1.75 A Nonstandard
