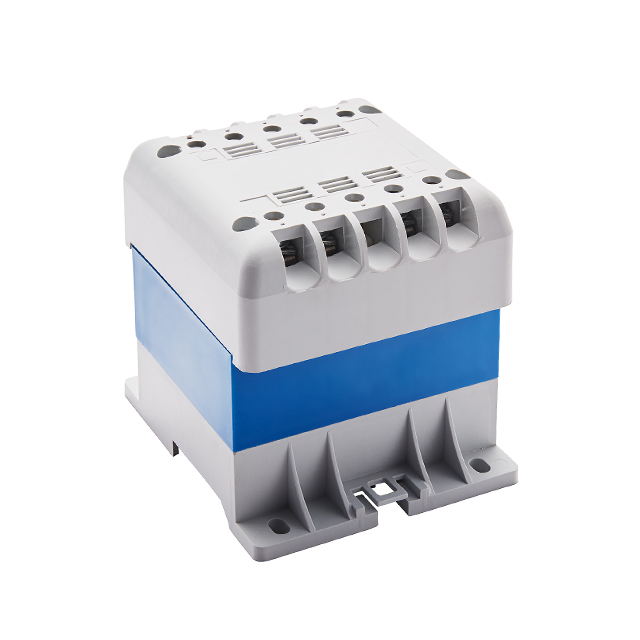

ECO-200-48
ActiveSignal Transformer
PWR XFMR LAMINATED 200VA CHAS MT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ECO-200-48
ActiveSignal Transformer
PWR XFMR LAMINATED 200VA CHAS MT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ECO-200-48 |
|---|---|
| Center Tap | False |
| Current - Output (Max) [custom] | 8.2 A |
| Current - Output (Max) [custom] | 4.1 A |
| Height - Seated (Max) [Max] | 116 mm |
| Mounting Type | Chassis Mount |
| Power - Max [Max] | 200 VA |
| Primary Winding(s) | Dual |
| Secondary Winding(s) | Dual |
| Size / Dimension [x] | 90 mm |
| Size / Dimension [y] | 106 mm |
| Termination Style | Terminal Block |
| Type | Laminated Core |
| Voltage - Isolation | 4000 Vrms |
| Voltage - Primary | 115 V, 230 V |
| Voltage - Secondary (Full Load) | 48 V, 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 10 | $ 101.75 | |
Description
General part information
ECO-200-48
PWR XFMR LAMINATED 200VA CHAS MT
