541FAB001023BAGR
Skyworks Solutions Inc.
XTAL OSCILLATOR SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
541FAB001023BAGR
Skyworks Solutions Inc.
XTAL OSCILLATOR SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 541FAB001023BAGR |
|---|---|
| Base Resonator | Crystal |
| Current - Supply (Disable) (Max) [Max] | 100 mA |
| Current - Supply (Max) [Max] | 108 mA |
| Frequency - Output 1 | 8 MHz, 24 MHz |
| Frequency Stability | 20 ppm |
| Function | Enable/Disable |
| Height [z] | 1.33 mm |
| Height [z] | 0.052 " |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output | CMOS |

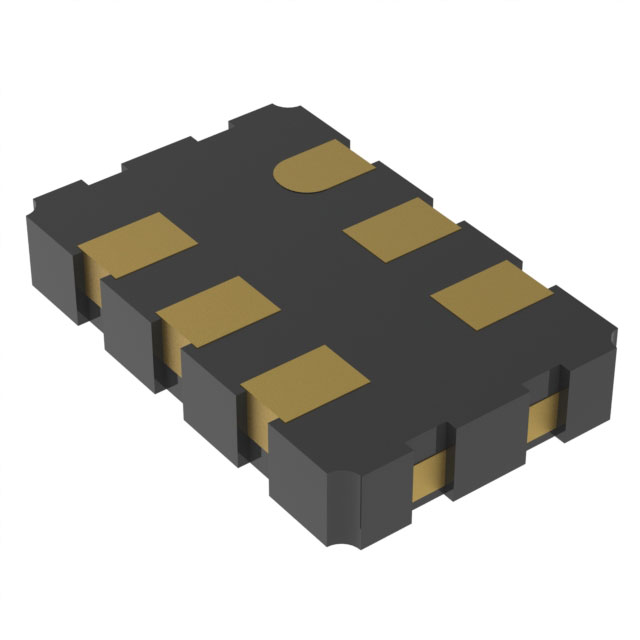

| Package / Case | 6-SMD, No Lead |
| Size / Dimension [x] | 0.197 in |
| Size / Dimension [x] | 5 mm |
| Size / Dimension [y] | 0.126 " |
| Size / Dimension [y] | 3.2 mm |
| Type | XO (Standard) |
| Voltage - Supply | 3.3 V, 1.8 V, 2.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 250 | $ 7.71 | |
Description
General part information
541FAB001023BAGR
CMOS XO (Standard) Pin Configurable Oscillator 1.8V, 2.5V, 3.3V 6-SMD, No Lead
