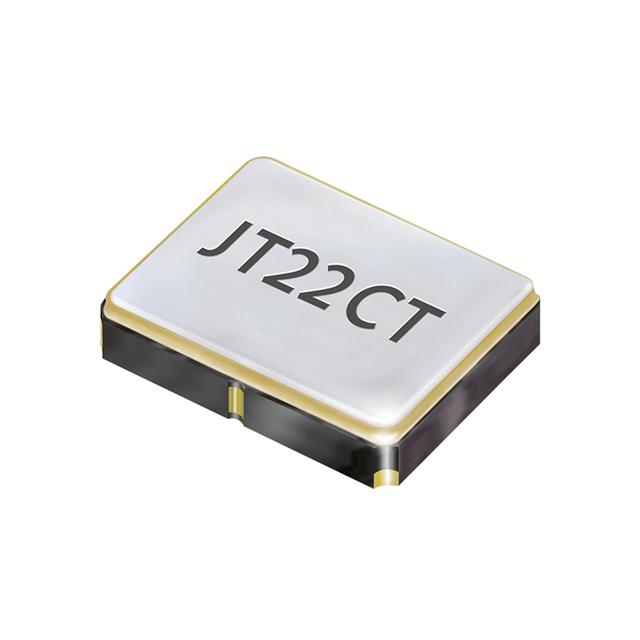

O 30,0-JT22CT-A-P-3,3-LF
ActiveJauch Quartz
OSC TCXO 30MHZ 3.3V HCMOS SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
O 30,0-JT22CT-A-P-3,3-LF
ActiveJauch Quartz
OSC TCXO 30MHZ 3.3V HCMOS SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | O 30,0-JT22CT-A-P-3,3-LF |
|---|---|
| Base Resonator | Crystal |
| Current - Supply (Disable) (Max) [Max] | 10 ÁA |
| Current - Supply (Max) [Max] | 7 mA |
| Frequency | 30 MHz |
| Frequency Stability | 2.5 ppm |
| Function | Standby (Power Down) |
| Height - Seated (Max) [Max] [z] | 0.035 " |
| Height - Seated (Max) [Max] [z] | 0.9 mm |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Output | HCMOS |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension [x] | 0.098 " |
| Size / Dimension [x] | 2.5 mm |
| Size / Dimension [y] | 2 mm |
| Size / Dimension [y] | 0.079 in |
| Type | TCXO |
| Voltage - Supply | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.45 | |
| 10 | $ 2.11 | |||
| 50 | $ 1.90 | |||
| 100 | $ 1.82 | |||
| Digi-Reel® | 1 | $ 2.45 | ||
| 10 | $ 2.11 | |||
| 50 | $ 1.90 | |||
| 100 | $ 1.82 | |||
| Tape & Reel (TR) | 500 | $ 1.64 | ||
| 1000 | $ 1.57 | |||
| 1500 | $ 1.53 | |||
| 2500 | $ 1.48 | |||
| 3500 | $ 1.45 | |||
| 5000 | $ 1.42 | |||
Description
General part information
O 30,0-JT22CT-A-P-3,3-LF
30 MHz TCXO HCMOS Oscillator 3.3V Standby (Power Down) 4-SMD, No Lead
