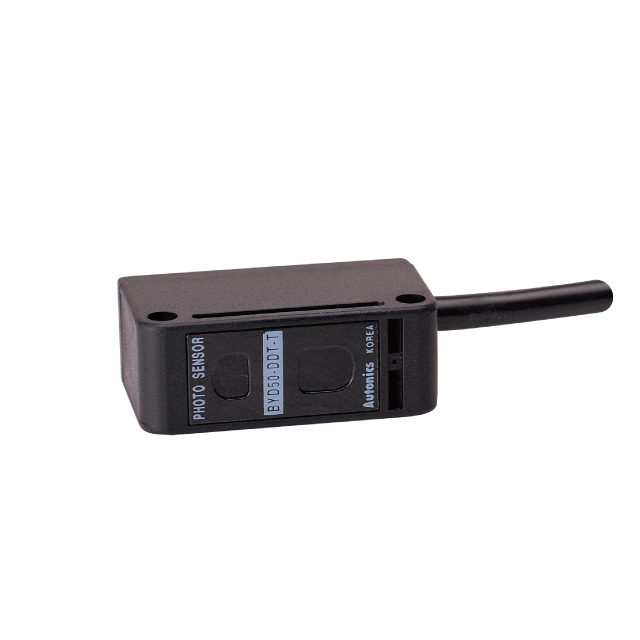

BYD50-DDT
ActiveAUTONICS
SENSOR, PHOTO, DIFFUSE REFLECTIVE, LIGHT ON, 50MM SENSING, NPN OUTPUT, 12-24 VDC
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
BYD50-DDT
ActiveAUTONICS
SENSOR, PHOTO, DIFFUSE REFLECTIVE, LIGHT ON, 50MM SENSING, NPN OUTPUT, 12-24 VDC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | BYD50-DDT |
|---|---|
| Adjustment Type | Fixed |
| Cable Length | 118.1 in |
| Cable Length | 3000 mm |
| Connection Method | Cable |
| Ingress Protection | IEC IP64 |
| Light Source | Infrared LED |
| Operating Temperature [Max] | 65 °C |
| Operating Temperature [Min] | -20 °C |
| Output Configuration | NPN - Open Collector/Light-ON |
| Response Time | 3 ms |
| Sensing Distance [Max] | 50 mm |
| Sensing Distance [Max] | 1.969 " |
| Sensing Distance [Min] | 10 mm |
| Sensing Distance [Min] | 0.328 " |
| Sensing Method | Convergent, Reflective |
| Voltage - Supply [Max] | 24 V |
| Voltage - Supply [Min] | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
BYD50-DDT
Reflective, Convergent Optical Sensor 0.328" ~ 1.969" (10mm ~ 50mm) NPN - Open Collector/Light-ON
