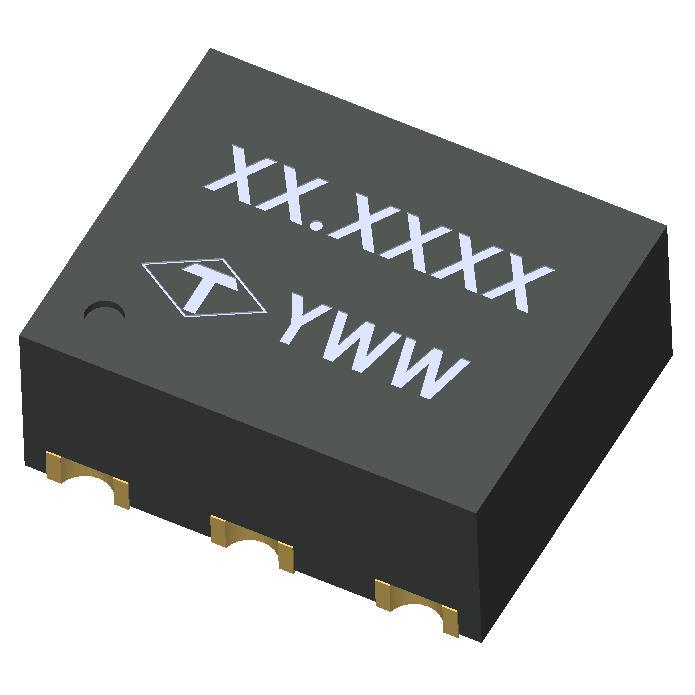

ONENGLVAKY-212.500000
ActiveTaitien
XTAL OSC XO 212.5 MHZ 3.3V LVDS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ONENGLVAKY-212.500000
ActiveTaitien
XTAL OSC XO 212.5 MHZ 3.3V LVDS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ONENGLVAKY-212.500000 |
|---|---|
| Base Resonator | Crystal |
| Current - Supply (Disable) (Max) [Max] | 90 mA |
| Current - Supply (Max) [Max] | 90 mA |
| Frequency | 212.5 MHz |
| Frequency Stability | 50 ppm |
| Function | Enable/Disable |
| Height - Seated (Max) [Max] [z] | 0.043 in |
| Height - Seated (Max) [Max] [z] | 1.1 mm |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output | LVDS |
| Package / Case | 6-SMD, No Lead |
| Size / Dimension [x] | 0.098 " |
| Size / Dimension [x] | 2.5 mm |
| Size / Dimension [y] | 2 mm |
| Size / Dimension [y] | 0.079 in |
| Type | XO (Standard) |
| Voltage - Supply | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Strip | 1 | $ 9.94 | |
| 10 | $ 9.32 | |||
| 50 | $ 9.01 | |||
| 100 | $ 8.70 | |||
| 500 | $ 8.39 | |||
| 1000 | $ 7.76 | |||
Description
General part information
ONENGLVAKY-212.500000
212.5 MHz XO (Standard) LVDS Oscillator 3.3V Enable/Disable 6-SMD, No Lead
