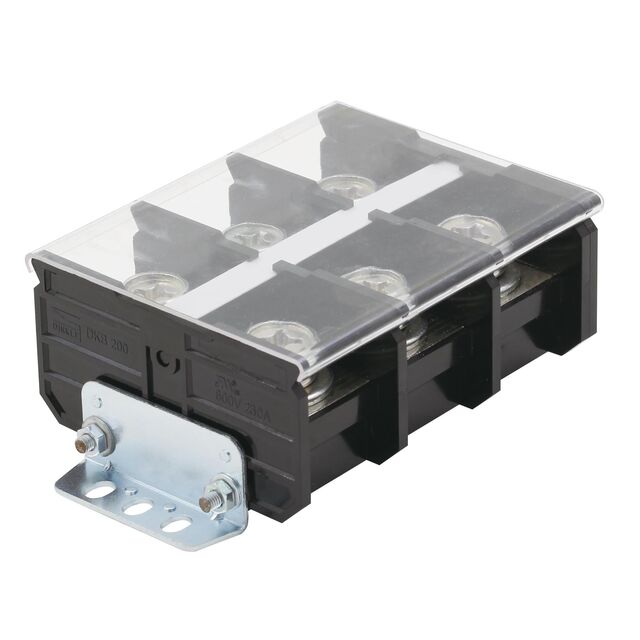

DKB200-03PCK
ActiveDinkle Corporation, USA
PANEL MOUNTING, SCREW CONNECTION
Deep-Dive with AI
Search across all available documentation for this part.
DKB200-03PCK
ActiveDinkle Corporation, USA
PANEL MOUNTING, SCREW CONNECTION
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DKB200-03PCK |
|---|---|
| Barrier Type | 2 Wall (Dual) |
| Bottom Termination | Closed |
| Color | Black |
| Current Rating (Amps) | 230 A |
| Features | Flange, Cover |
| Material - Insulation | Polycarbonate |
| Material - Insulation | PC |
| Material Flammability Rating | UL94 V-2 |
| Mounting Type | Panel, Chassis |
| Number of Circuits | 3 |
| Number of Rows | 2 |
| Number of Wire Entries | 6 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Pitch [x] | 1.299 in |
| Pitch [x] | 33 mm |
| Terminal Block Type | Barrier Block |
| Top Termination | Screws |
| Voltage Rating | 600 V |
| Wire Gauge [Max] | 8 AWG |
| Wire Gauge [Min] | 4 aught AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 145.14 | |
| 10 | $ 108.85 | |||
| 50 | $ 94.34 | |||
| 100 | $ 87.08 | |||
| 500 | $ 72.57 | |||
Description
General part information
DKB200-03PCK
3 Circuit 1.299" (33.00mm) Barrier Block Connector Screws
