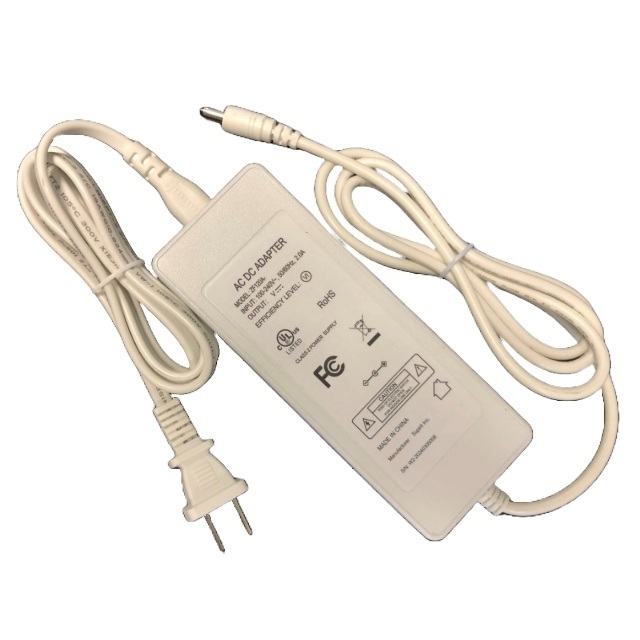

ZF120A-2404000
ActiveSupirit Inc.
AC/DC ADAPTER 24V 96W CLASS 2
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ZF120A-2404000
ActiveSupirit Inc.
AC/DC ADAPTER 24V 96W CLASS 2
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ZF120A-2404000 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | cULus, FCC, CE |
| Cord Length | 1.2 m |
| Cord Length | 47.2 in |
| Current - Output (Max) [Max] | 4 A |
| Efficiency | Level VI |
| Form | Desktop (Class II) |
| Input Connector | NEMA 1-15P |
| Input Type | Cord |
| No Load Power Consumption | 210 mW |
| Operating Temperature [Max] | 40 °C |
| Operating Temperature [Min] | 0 °C |
| Output Connector | Barrel Plug |
| Output Connector [diameter] | 5.5 mm, 2.5 mm |
| Output Connector [x] | 11 mm |
| Polarization | Positive Center |
| Power (Watts) | 96 W |
| Region Utilized | North America |
| Size / Dimension [x] | 6.02 in |
| Size / Dimension [x] | 153 mm |
| Size / Dimension [y] | 60 mm |
| Size / Dimension [y] | 2.36 " |
| Size / Dimension [z] | 38 mm |
| Size / Dimension [z] | 1.5 " |
| Standard Number | 1310 |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Output | 24 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 26.94 | |
| 10 | $ 24.82 | |||
| 25 | $ 23.40 | |||
| 50 | $ 22.69 | |||
| 100 | $ 21.27 | |||
| 250 | $ 19.50 | |||
| 500 | $ 18.86 | |||
Description
General part information
ZF120A-2404000
24V 96 W AC/DC External Desktop (Class II) Adapter Cord Input
