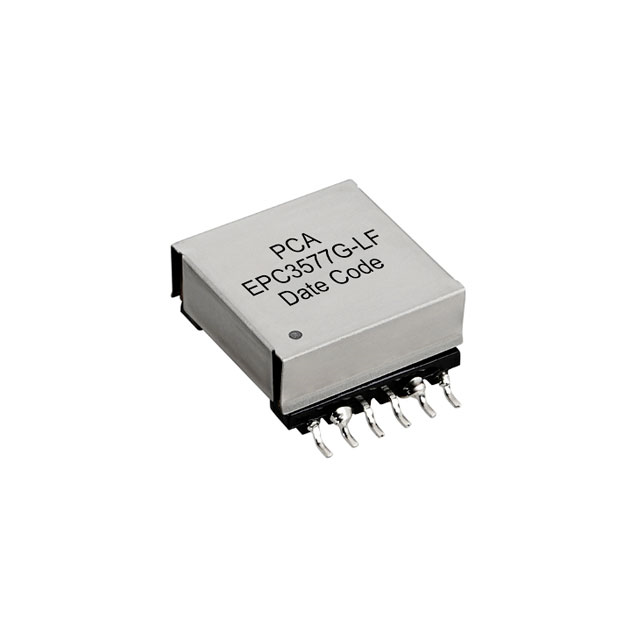

EPC3577G-LF
ActivePCA Electronics, Inc.
XFMR FWD CON DC/DC CON 180UH SM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EPC3577G-LF
ActivePCA Electronics, Inc.
XFMR FWD CON DC/DC CON 180UH SM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | EPC3577G-LF |
|---|---|
| Applications | Forward Converters |
| Chipset Manufacturer | Analog Devices |
| Footprint [x] | 0.83 " |
| Footprint [x] | 21.08 mm |
| Footprint [y] | 1.14 in |
| Footprint [y] | 28.86 mm |
| Frequency | 200 kHz |
| Height - Seated (Max) [Max] | 0.453 " |
| Height - Seated (Max) [Max] | 11.51 mm |
| Inductance @ Frequency | 100 kHz, 180 µH |
| Intended Chipset | LT4276A, LT4295 |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Type | For DC/DC Converters |
| Voltage - Auxiliary | 12 V |
| Voltage - Isolation | 1500 VAC |
| Voltage - Primary [Max] | 57 V |
| Voltage - Primary [Min] | 33 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 1 | $ 10.78 | |
| 2 | $ 9.57 | |||
| 5 | $ 8.37 | |||
| 10 | $ 7.27 | |||
| 25 | $ 7.19 | |||
| 50 | $ 6.01 | |||
| 100 | $ 4.96 | |||
| 250 | $ 4.22 | |||
Description
General part information
EPC3577G-LF
Forward Converters For For DC/DC Converters SMPS Transformer 1500Vrms Isolation 200kHz Surface Mount
