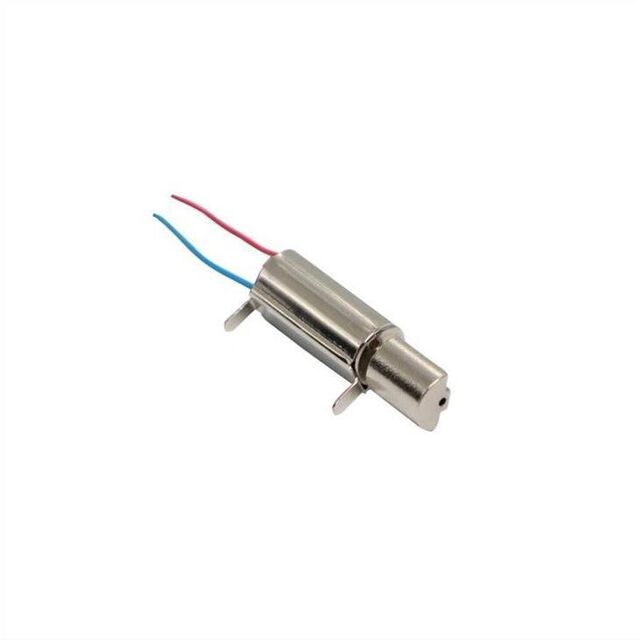

IND-YZ0716J-3253
ActiveINEED MOTOR
7MM DIA THRU-HOLE PCB MOUNTED VI
Deep-Dive with AI
Search across all available documentation for this part.
IND-YZ0716J-3253
ActiveINEED MOTOR
7MM DIA THRU-HOLE PCB MOUNTED VI
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | IND-YZ0716J-3253 |
|---|---|
| Diameter - Shaft [diameter] | 7.8 mm |
| Diameter - Shaft [diameter] | 0.307 in |
| Function | ERM, Vibration |
| Length - Shaft and Bearing [x] | 0.906 in |
| Length - Shaft and Bearing [x] | 23 mm |
| Motor Type | Brushed |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -20 C |
| RPM | 12000 RPM |
| Termination Style | Wire Leads, Quick Connect |
| Voltage - Rated | 3 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 1.00 | |
| 5 | $ 0.95 | |||
| 10 | $ 0.90 | |||
| 50 | $ 0.85 | |||
| 100 | $ 0.80 | |||
| 250 | $ 0.75 | |||
| 500 | $ 0.70 | |||
| 1000 | $ 0.62 | |||
Description
General part information
IND-YZ0716J-3253
Brushed Vibration, ERM 12000 RPM 3VDC
Documents
Technical documentation and resources
No documents available
