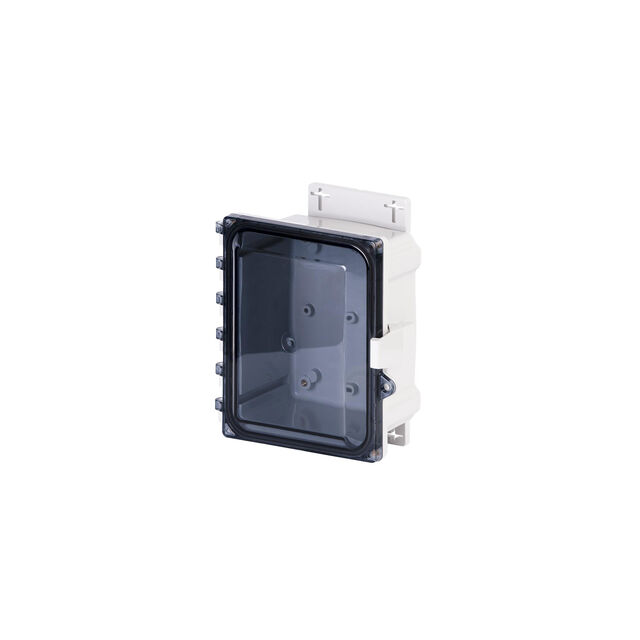

AHF864C
ActiveAttabox
PC ENCL 8X6X4 CLR CVR FLANGE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AHF864C
ActiveAttabox
PC ENCL 8X6X4 CLR CVR FLANGE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AHF864C |
|---|---|
| Area (L x W) | 48 in² |
| Area (L x W) | 310 cm² |
| Color | Gray, Clear Cover/Door |
| Container Type | Enclosure |
| Design | Cover Included |
| Height [z] | 101.6 mm |
| Height [z] | 101.6 mm |
| Material | Plastic, Polycarbonate (PC) |
| Material Flammability Rating | UL94 5VA |
| Ratings | NEMA 6, NEMA 4X, UL-508A, UL-50E, NEMA 12, UL-50, IP66, IP68, NEMA 1, NEMA 3R, NEMA 4, NEMA 6P |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 120.25 | |
Description
General part information
AHF864C
Enclosure Plastic, Polycarbonate (PC) Gray, Clear Cover/Door Cover Included 8.000" L x 6.000" W (203.20mm x 152.40mm) X 4.000" (101.60mm)
Documents
Technical documentation and resources
