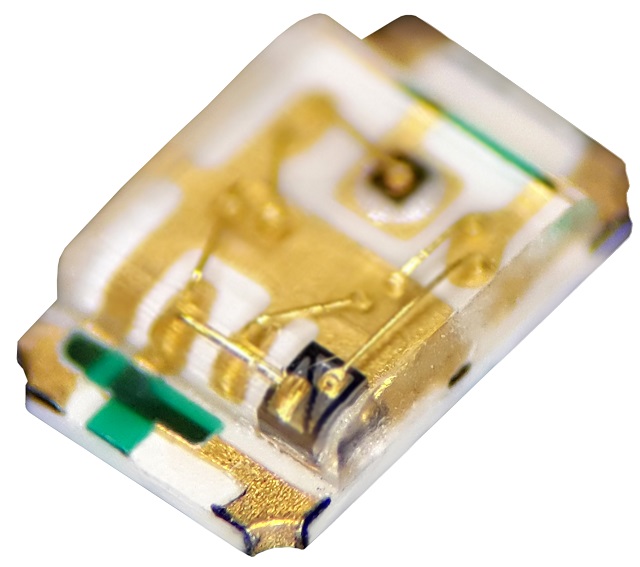

E3743FCH-20D0001H2U1930
ActiveHarvatek Corporation
LED RGB 0805 SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
E3743FCH-20D0001H2U1930
ActiveHarvatek Corporation
LED RGB 0805 SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | E3743FCH-20D0001H2U1930 |
|---|---|
| Color | Red, Green, Blue |
| Configuration | Common Anode |
| Height (Max) [Max] | 0.6 mm |
| Lens Size [x] | 1.4 mm |
| Lens Size [y] | 1.3 mm |
| Lens Style | Rectangle with Flat Top |
| Millicandela Rating [custom] | 71.5 mcd |
| Millicandela Rating [custom] | 112.5 mcd |
| Millicandela Rating [custom] | 285 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 0805 |
| Size / Dimension [x] | 2 mm |
| Size / Dimension [y] | 1.3 mm |
| Supplier Device Package | 0805 |
| Viewing Angle [custom] | 128 ° |
| Viewing Angle [custom] | 120 ° |
| Viewing Angle [custom] | 130 ° |
| Voltage - Forward (Vf) (Typ) | 3.3 V, 3.3 V, 2 V |
| Wavelength - Dominant [custom] | 624 nm |
| Wavelength - Dominant [custom] | 470 nm |
| Wavelength - Dominant [custom] | 525 nm |
| Wavelength - Peak [custom] | 520 nm |
| Wavelength - Peak [custom] | 632 nm |
| Wavelength - Peak [custom] | 468 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.16 | |
| Digi-Reel® | 1 | $ 0.16 | ||
| Tape & Reel (TR) | 2000 | $ 0.15 | ||
Description
General part information
E3743FCH-20D0001H2U1930
Red, Green, Blue (RGB) 624nm Red, 525nm Green, 470nm Blue LED Indication - Discrete 2V Red, 3.3V Green, 3.3V Blue 0805 (2012 Metric)
