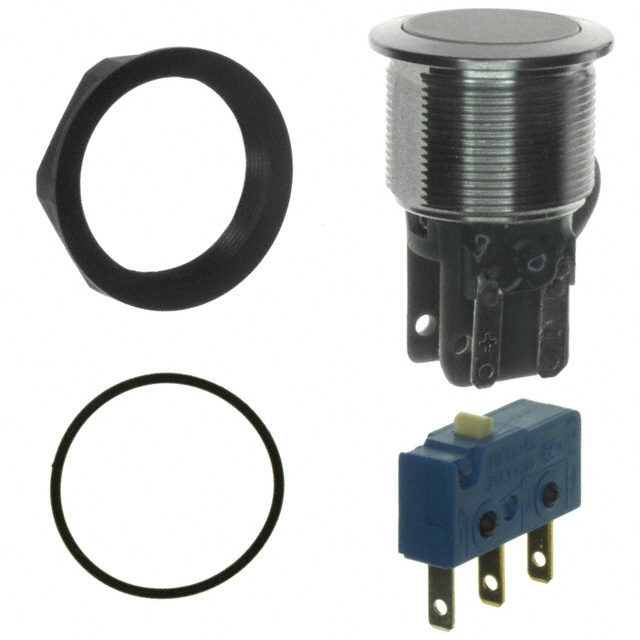

1241.7026.1112000
ObsoleteSCHURTER Inc.
SWITCH PUSHBUTTON SPDT 100MA 30V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsMSM CS Series Flyer
1241.7026.1112000
ObsoleteSCHURTER Inc.
SWITCH PUSHBUTTON SPDT 100MA 30V
Deep-Dive with AI
DocumentsMSM CS Series Flyer
Technical Specifications
Parameters and characteristics for this part
| Specification | 1241.7026.1112000 |
|---|---|
| Actuator Marking | No Marking |
| Actuator Type | Flush, Button, Round |
| Circuit | SPDT |
| Color - Actuator/Cap | Clear |
| Current Rating (Amps) | 100 mA |
| Electrical Life | 200000 Cycles |
| Features | Ceramic Actuator |
| Illumination Type, Color | LED, Green |
| Illumination Voltage (Nominal) | 24 V |
| Ingress Protection | IP40 |
| Mechanical Life | 1500000 Cycles |
| Mounting Type | Panel Mount, Front |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -25 °C |
| Panel Cutout Dimensions [diameter] | 19.1 mm |
| Switch Function | On-Mom |
| Termination Style | Quick Connect - 0.110" (2.8mm) |
| Type | Anti-Vandal, Illuminated |
| Voltage Rating - DC | 30 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 26.59 | |
Description
General part information
1241.7026.1112000
Pushbutton Switch SPDT Anti-Vandal, Illuminated Panel Mount, Front
