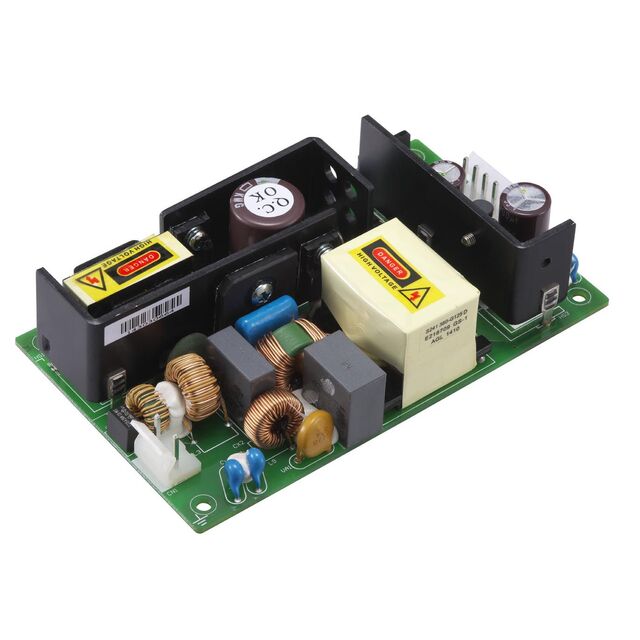

MPE-G123
ActiveMagic Power
12V 10A 120W CONVECTION, 150W WI
Deep-Dive with AI
Search across all available documentation for this part.
MPE-G123
ActiveMagic Power
12V 10A 120W CONVECTION, 150W WI
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MPE-G123 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CE, cURus |
| Current - Output 1 | 12.5 A |
| Efficiency | 88 % |
| Features | Standby Output, Universal Input, PFC, DC Input Capable |
| Minimum Load Required | False |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 °C |
| Power (Watts) | 150 W, 120 W |
| Size / Dimension [x] | 5 in |
| Size / Dimension [x] | 127 mm |
| Size / Dimension [y] | 3.14 in |
| Size / Dimension [y] | 76.2 mm |
| Size / Dimension [z] | 34.3 mm |
| Size / Dimension [z] | 1.35 " |
| Standard Number | 60950-1, 62368-1 |
| Type | Open Frame |
| Voltage - Input [Max] | 264 VAC, 370 VDC |
| Voltage - Input [Min] | 130 VDC, 85 VAC |
| Voltage - Isolation | 3000 V |
| Voltage - Output 1 | 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 48.60 | |
| 5 | $ 47.90 | |||
| 10 | $ 47.20 | |||
| 20 | $ 46.70 | |||
| 50 | $ 46.10 | |||
Description
General part information
MPE-G123
Open Frame AC DC Converters 1 Output 12V 85 ~ 264 VAC, 130 ~ 370 VDC Input
Documents
Technical documentation and resources
No documents available
