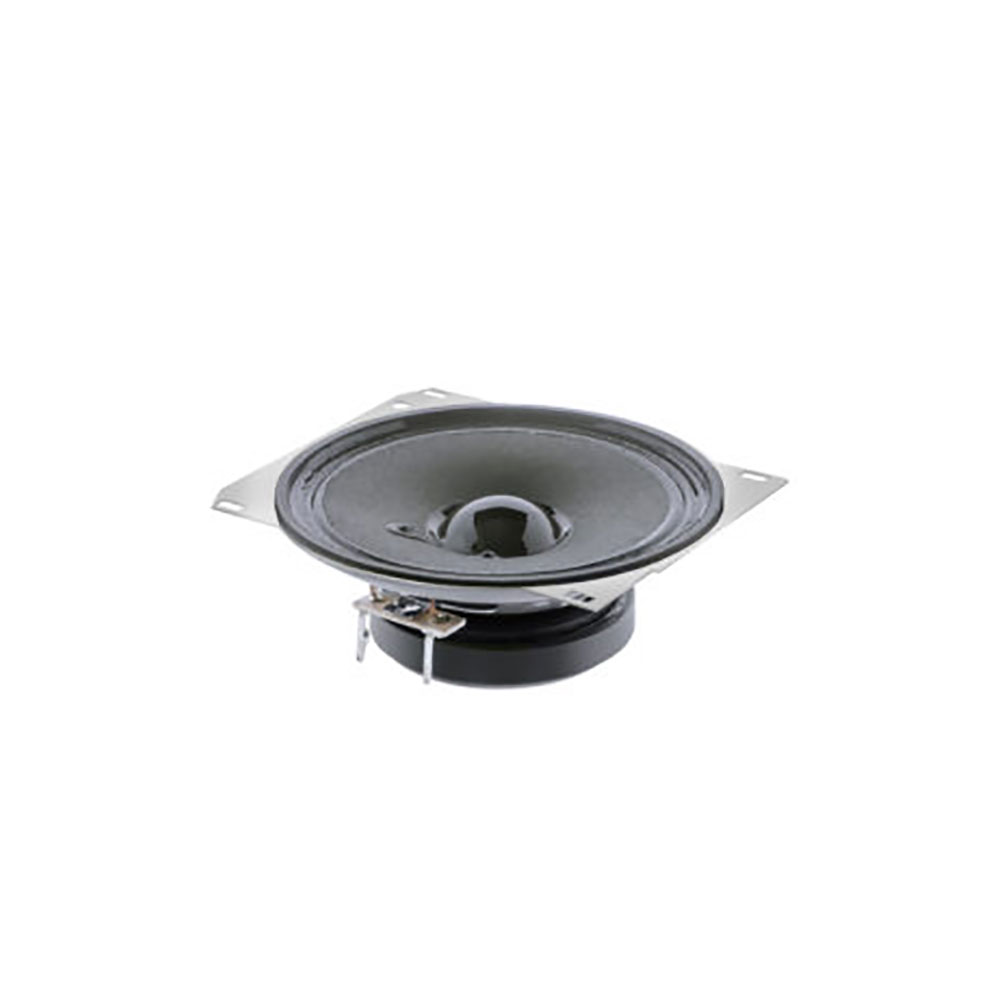

A0100008FP09IA
ActiveStetron
LOUDSPEAKER, 103 MM ; 8OHMS, 15W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
A0100008FP09IA
ActiveStetron
LOUDSPEAKER, 103 MM ; 8OHMS, 15W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | A0100008FP09IA |
|---|---|
| Distortion Rating | 8 W |
| Distortion Rating [Max] | 3550 Hz, 20 % |
| Distortion Rating [Min] | 710 Hz |
| Efficiency - dBA | 98 dBA |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Frequency - Self Resonant | 900 Hz |
| Frequency Range [Max] | 6 kHz |
| Frequency Range [Min] | 900 Hz |
| Height - Seated (Max) | 1.594 in |
| Height - Seated (Max) | 40.5 mm |
| Impedance | 8 Ohms |
| Material - Cone | Paper |
| Material - Magnet | Ferrite |
| Port Location | Top |
| Power - Max [Max] | 30 W |
| Power - Rated | 15 W |
| Shape | Square Frame, Round |
| Size / Dimension [x] | 4.055 in |
| Size / Dimension [x] | 103 mm |
| Size / Dimension [y] | 103 mm |
| Size / Dimension [y] | 4.055 in |
| Technology | Magnetic |
| Termination | Solder Eyelet(s) |
| Type | General Purpose |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 12.30 | |
| 10 | $ 10.25 | |||
| 50 | $ 9.64 | |||
Description
General part information
A0100008FP09IA
8 Ohms General Purpose Speaker 15 W 900 Hz ~ 6 kHz Top Round, Square Frame
