UPG2214TB-A
ObsoleteCEL
IC RF SWITCH SPDT 3GHZ 6-SMINI
Deep-Dive with AI
Search across all available documentation for this part.
UPG2214TB-A
ObsoleteCEL
IC RF SWITCH SPDT 3GHZ 6-SMINI
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | UPG2214TB-A |
|---|---|
| Circuit | SPDT |
| Frequency Range [Max] | 3 GHz |
| Frequency Range [Min] | 50 MHz |
| IIP3 | 58 dBm |
| Impedance | 50 Ohms |
| Insertion Loss | 0.35 dB |
| Isolation | 24 dB |
| P1dB | 27 dB |

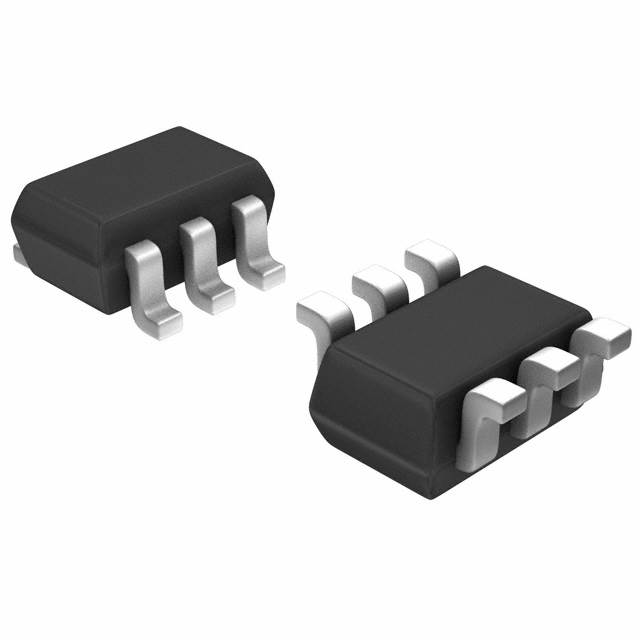

| Package / Case | 6-TSSOP, SC-88, SOT-363 |
| RF Type | 802.11a/b/g/WiFi, WLAN, 802.16/WiMax |
| Supplier Device Package | 6-SuperMiniMold |
| Test Frequency | 3 GHz |
| Topology | Reflective |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
UPG2214TB-A
RF Switch IC 802.11a/b/g/WiFi, 802.16/WiMax, WLAN SPDT 3 GHz 50Ohm 6-SuperMiniMold
