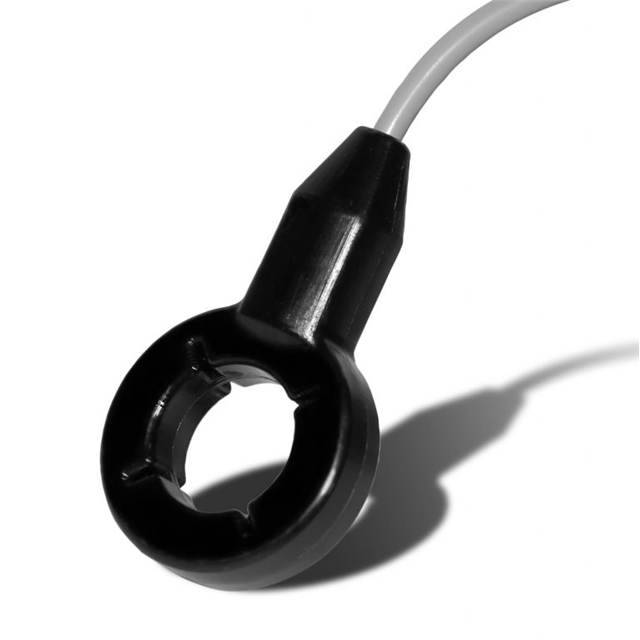

RAZFL-104BMCG
ActiveRaztec Sensors
100A MOULDED CURRENT SENSOR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RAZFL-104BMCG
ActiveRaztec Sensors
100A MOULDED CURRENT SENSOR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RAZFL-104BMCG |
|---|---|
| Accuracy | 2 % |
| Current - Sensing | 100 A |
| Current - Supply (Max) [Max] | 15 mA |
| For Measuring | AC/DC |
| Frequency | 120 kHz |
| Linearity | 0.5 % |
| Mounting Type | Free Hanging |
| Number of Channels | 1 |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -40 °C |
| Output | Analog Voltage |
| Polarization | Bidirectional |
| Response Time | 3.7 µs |
| Sensitivity | 16 mV/A |
| Sensor Type | Hall Effect, Open Loop |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 62.36 | |
| 100 | $ 59.39 | |||
| 1000 | $ 56.55 | |||
| 10000 | $ 53.87 | |||
Description
General part information
RAZFL-104BMCG
Current Sensor 100A 1 Channel Hall Effect, Open Loop Bidirectional
