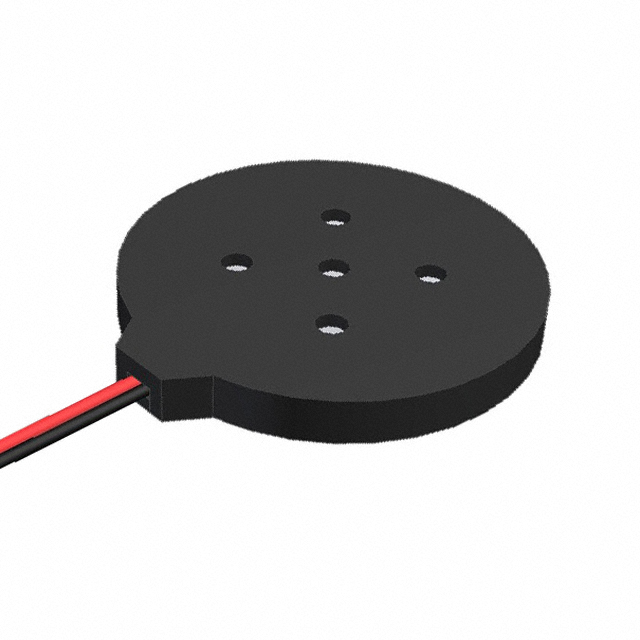

AT-1803-T-LW50-R
ObsoletePUI AUDIO
BUZZER PIEZO 3V 17.7MM CUSTOM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AT-1803-T-LW50-R
ObsoletePUI AUDIO
BUZZER PIEZO 3V 17.7MM CUSTOM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AT-1803-T-LW50-R |
|---|---|
| Current - Supply | 3 mA |
| Driver Circuitry | Externally Driven, Transducer |
| Frequency | 2.5 kHz |
| Height - Seated (Max) [Max] [z] | 2.5 mm |
| Height - Seated (Max) [Max] [z] | 0.098 in |
| Input Type | Peak-Peak Signal |
| Mounting Type | Custom |
| Operating Mode | Single Tone |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -20 C |
| Port Location | Top |
| Size / Dimension [diameter] | 0.697 in |
| Size / Dimension [diameter] | 17.7 mm |
| Sound Pressure Level (SPL) | 106 dB |
| Technology | Piezo |
| Termination | Wire Leads |
| Voltage - Rated | 3 VDC |
| Voltage Range [Max] | 10 V |
| Voltage Range [Min] | 1 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
AT-1803-T-LW50-R
Buzzers Transducer, Externally Driven Piezo 3 V 3mA 2.5kHz 106dB @ 3V, 1cm Custom Wire Leads
