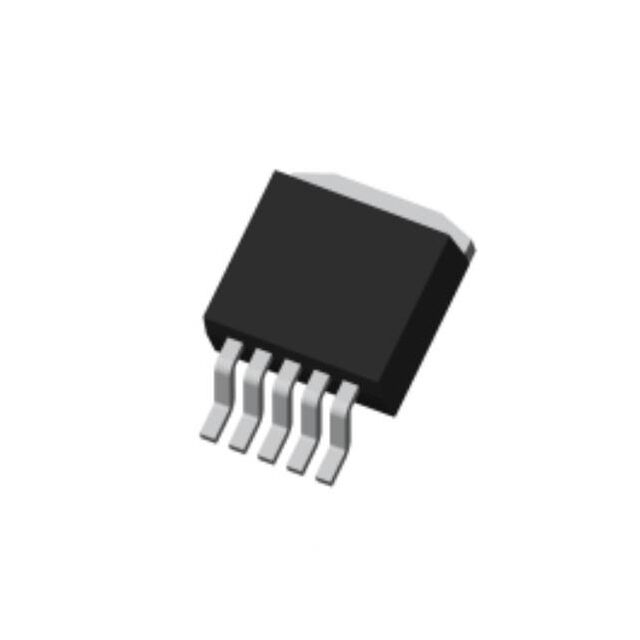

LM2596GR-5.0
ActiveTAEJIN
IC REG BUCK 5V 3A TO263-5
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
LM2596GR-5.0
ActiveTAEJIN
IC REG BUCK 5V 3A TO263-5
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LM2596GR-5.0 |
|---|---|
| Current - Output | 3 A |
| Function | Step-Down |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 125 ¯C |
| Operating Temperature [Min] | -40 °C |
| Output Configuration | Positive |
| Output Type | 1.81 mOhm |
| Package / Case | TO-263-6, TO-263BA, D2PAK (5 Leads + Tab) |
| Supplier Device Package | TO-263-5L |
| Synchronous Rectifier | False |
| Topology | Buck |
| Voltage - Output (Min/Fixed) | 5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 800 | $ 1.07 | |
Description
General part information
LM2596GR-5.0
Buck Switching Regulator IC Positive Fixed 5V 1 Output 3A TO-263-6, D2PAK (5 Leads + Tab), TO-263BA
Documents
Technical documentation and resources
