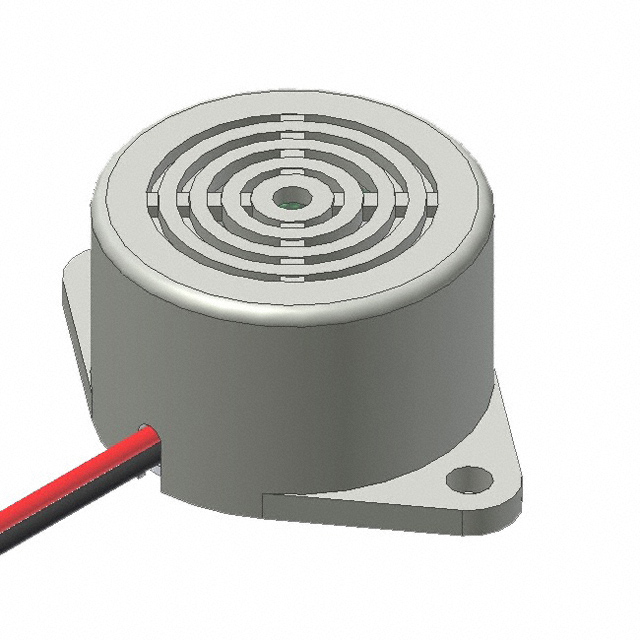

AI-2604-TF-LW115-12V-R
ObsoletePUI AUDIO
BUZZER MAGNETIC 12V 26MM FLANGE
Deep-Dive with AI
Search across all available documentation for this part.
AI-2604-TF-LW115-12V-R
ObsoletePUI AUDIO
BUZZER MAGNETIC 12V 26MM FLANGE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | AI-2604-TF-LW115-12V-R |
|---|---|
| Current - Supply | 50 mA |
| Driver Circuitry | Internally Driven, Indicator |
| Frequency | 400 Hz |
| Height - Seated (Max) [Max] | 16.7 mm |
| Height - Seated (Max) [Max] | 0.657 in |
| Input Type | DC |
| Mounting Type | Panel Mount, Flange |
| Operating Mode | Single Tone |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -20 C |
| Port Location | Top |
| Size / Dimension | 26 mm |
| Size / Dimension [diameter] | 1.024 in |
| Sound Pressure Level (SPL) | 89 dB |
| Technology | Electromechanical/Magnetic |
| Termination | Wire Leads |
| Voltage - Rated | 12 VDC |
| Voltage Range [Max] | 16 V |
| Voltage Range [Min] | 8 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
AI-2604-TF-LW115-12V-R
Buzzers Indicator, Internally Driven Electromechanical/Magnetic 12 V 50mA 400Hz 89dB @ 12V, 10cm Panel Mount, Flange Wire Leads
Documents
Technical documentation and resources
No documents available
