OPA340NA/3KG4
UnknownTexas Instruments
IC OPAMP GP 1 CIRCUIT SOT23-5
Deep-Dive with AI
Search across all available documentation for this part.
OPA340NA/3KG4
UnknownTexas Instruments
IC OPAMP GP 1 CIRCUIT SOT23-5
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | OPA340NA/3KG4 |
|---|---|
| Amplifier Type | General Purpose |
| Current - Input Bias | 0.2 pA |
| Current - Output / Channel | 50 mA |
| Current - Supply | 750 µA |
| Gain Bandwidth Product | 5.5 MHz |
| Mounting Type | Surface Mount |
| Number of Circuits | 1 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output Type | Rail-to-Rail |

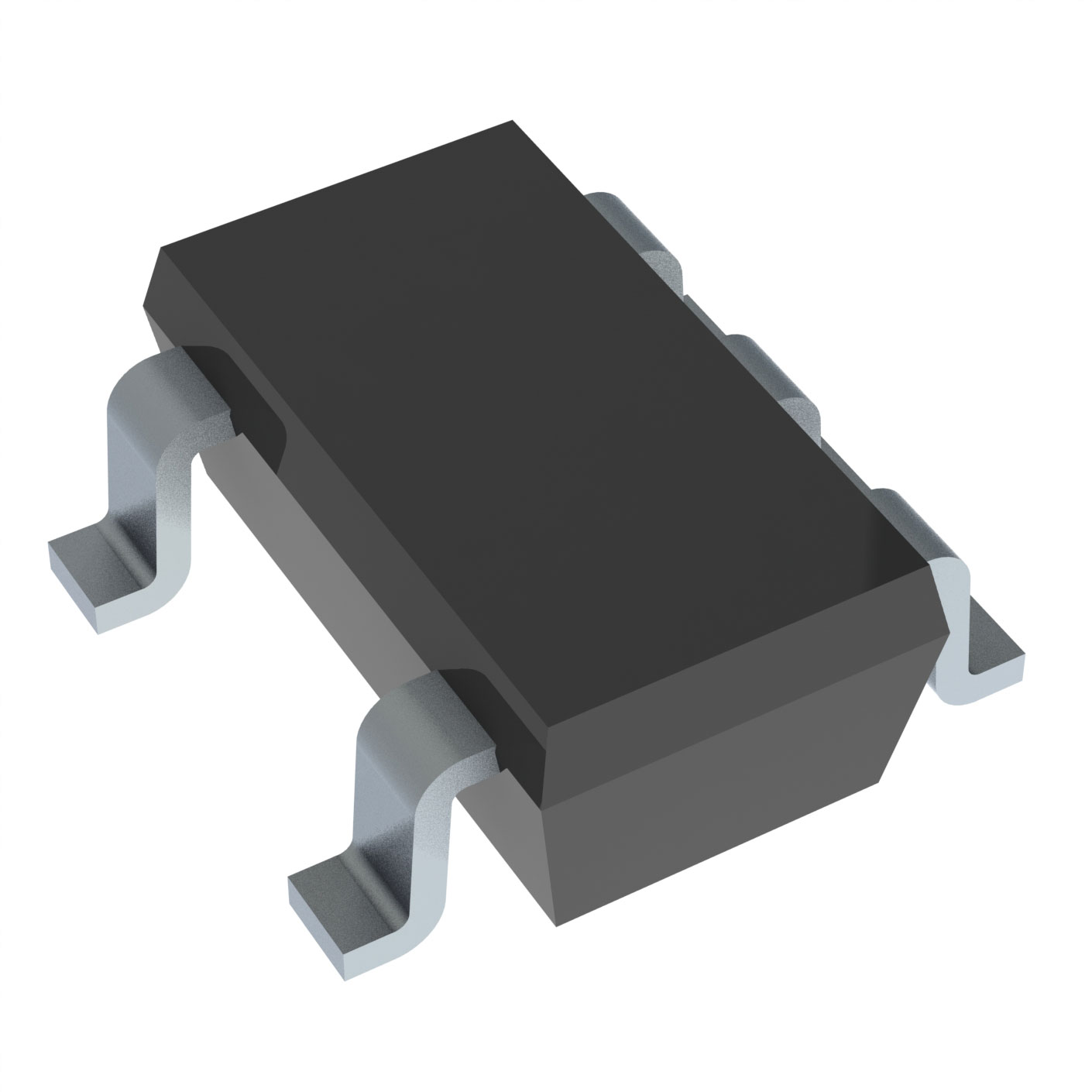

| Package / Case | SC-74A, SOT-753 |
| Slew Rate | 6 V/çs |
| Supplier Device Package | SOT-23-5 |
| Voltage - Input Offset | 150 µV |
| Voltage - Supply Span (Max) [Max] | 5.5 V |
| Voltage - Supply Span (Min) [Min] | 2.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.74 | |
| Digi-Reel® | 1 | $ 2.74 | ||
| Tape & Reel (TR) | 3000 | $ 1.25 | ||
| 6000 | $ 1.21 | |||
Description
General part information
OPA340NA/3KG4
General Purpose Amplifier 1 Circuit Rail-to-Rail SOT-23-5
Documents
Technical documentation and resources
No documents available
