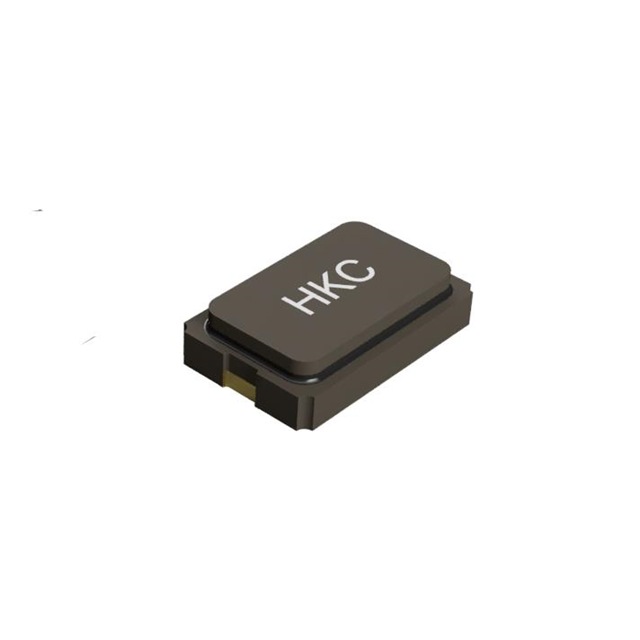

HKA5032GX-8MHZ-32656-R2V1-TR
ActiveHong Kong Automotive X’tals Limited
QUARTZ CRYSTAL 8MHZ 8PF SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
HKA5032GX-8MHZ-32656-R2V1-TR
ActiveHong Kong Automotive X’tals Limited
QUARTZ CRYSTAL 8MHZ 8PF SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | HKA5032GX-8MHZ-32656-R2V1-TR |
|---|---|
| ESR (Equivalent Series Resistance) | 150 Ohms |
| Frequency | 8 MHz |
| Frequency Stability | 100 ppm |
| Frequency Tolerance | 30 ppm |
| Height - Seated (Max) | 1.35 mm |
| Height - Seated (Max) [Max] [z] | 0.053 in |
| Load Capacitance | 8 pF |
| Mounting Type | Surface Mount |
| Operating Mode | Fundamental |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 2-SMD, No Lead |
| Ratings | AEC-Q200 |
| Size / Dimension [x] | 0.197 in |
| Size / Dimension [x] | 5 mm |
| Size / Dimension [y] | 0.126 " |
| Size / Dimension [y] | 3.2 mm |
| Type | MHz Crystal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.66 | |
| 10 | $ 0.55 | |||
| 50 | $ 0.50 | |||
| 100 | $ 0.44 | |||
| 500 | $ 0.42 | |||
| Digi-Reel® | 1 | $ 0.66 | ||
| 10 | $ 0.55 | |||
| 50 | $ 0.50 | |||
| 100 | $ 0.44 | |||
| 500 | $ 0.42 | |||
| Tape & Reel (TR) | 1000 | $ 0.35 | ||
| 3000 | $ 0.33 | |||
| 5000 | $ 0.32 | |||
| 10000 | $ 0.31 | |||
Description
General part information
HKA5032GX-8MHZ-32656-R2V1-TR
8 MHz ±30ppm Crystal 8pF 150 Ohms 2-SMD, No Lead
