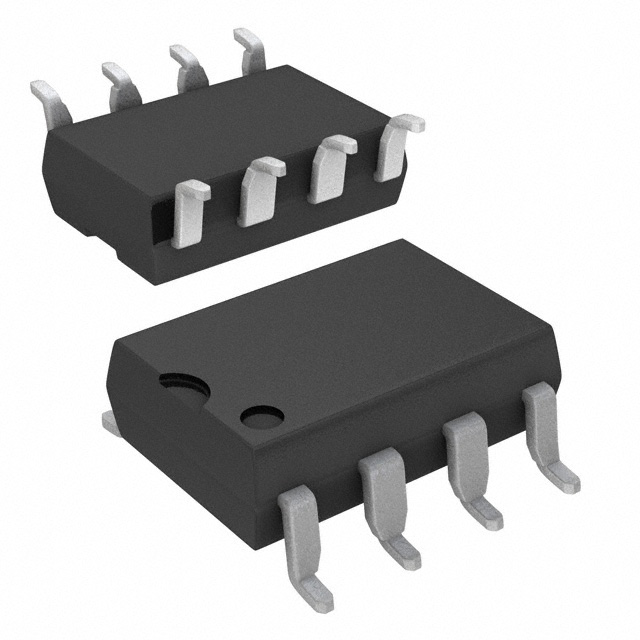

ISP827XSMT&R
ActiveIsocom Components 2004 LTD
OPTOCPLR, TRANSISTOR, 2CH, 5.3KV, SMD8 ROHS COMPLIANT: YES
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ISP827XSMT&R
ActiveIsocom Components 2004 LTD
OPTOCPLR, TRANSISTOR, 2CH, 5.3KV, SMD8 ROHS COMPLIANT: YES
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ISP827XSMT&R |
|---|---|
| Current - DC Forward (If) (Max) | 50 mA |
| Current - Output / Channel | 50 mA |
| Current Transfer Ratio (Max) [Max] | 600 % |
| Current Transfer Ratio (Min) [Min] | 50 % |
| Input Type | DC |
| Mounting Type | Surface Mount |
| Number of Channels [custom] | 2 |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -30 ░C |
| Output Type | 1.81 mOhm |
| Rise / Fall Time (Typ) [custom] | 3 µs |
| Rise / Fall Time (Typ) [custom] | 4 µs |
| Supplier Device Package | 8-SMD |
| Vce Saturation (Max) | 200 mV |
| Voltage - Output (Max) [Max] | 35 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.28 | |
| 10 | $ 0.80 | |||
| 25 | $ 0.68 | |||
| 100 | $ 0.53 | |||
| 250 | $ 0.46 | |||
| 500 | $ 0.42 | |||
| Digi-Reel® | 1 | $ 1.28 | ||
| 10 | $ 0.80 | |||
| 25 | $ 0.68 | |||
| 100 | $ 0.53 | |||
| 250 | $ 0.46 | |||
| 500 | $ 0.42 | |||
| Tape & Reel (TR) | 1000 | $ 0.38 | ||
| 2000 | $ 0.35 | |||
| 3000 | $ 0.34 | |||
| 5000 | $ 0.32 | |||
| 7000 | $ 0.31 | |||
| 10000 | $ 0.30 | |||
| 25000 | $ 0.28 | |||
| Newark | Each (Supplied on Cut Tape) | 1 | $ 0.98 | |
Description
General part information
ISP827XSMT&R
Optoisolator Transistor Output 5000Vrms 2 Channel 8-SMD
