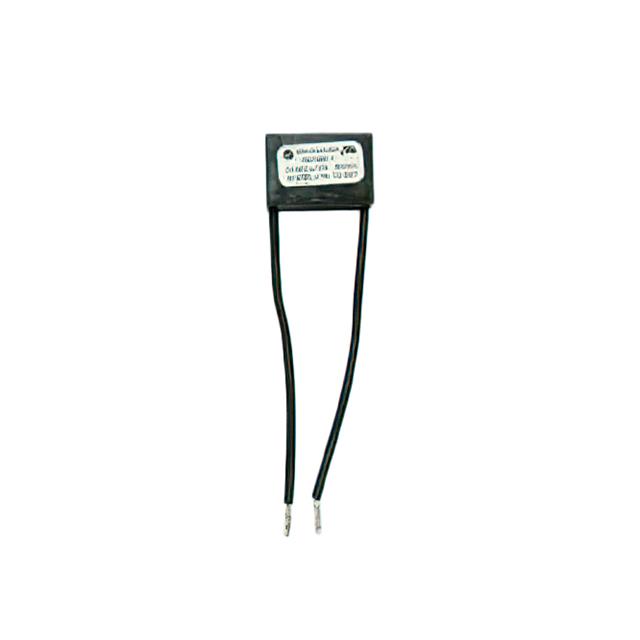

RG1986-8
ActiveElectrocube
FILTER RC 220OHM/0.5UF TH
Deep-Dive with AI
Search across all available documentation for this part.
RG1986-8
ActiveElectrocube
FILTER RC 220OHM/0.5UF TH
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RG1986-8 |
|---|---|
| Applications | General Purpose |
| ESD Protection | False |
| Filter Order | 1st |
| Height [z] | 0.87 " |
| Height [z] | 22.1 mm |
| Mounting Type | Through Hole |
| Number of Channels | 1 |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Radial |
| Size / Dimension [x] | 1.25 " |
| Size / Dimension [x] | 31.75 mm |
| Size / Dimension [y] | 14.73 mm |
| Size / Dimension [y] | 0.58 " |
| Technology | RC |
| Type | Low Pass |
| Voltage - Rated | 600 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
RG1986-8
RC EMI Filter 1st Order Low Pass 1 Channel R = 220Ohm, C = 0.5µF Radial
Documents
Technical documentation and resources
No documents available
