MI988F-1605
ActiveiBASE Technology
SBC 1 CORE 32GB/0GB RAM
Deep-Dive with AI
Search across all available documentation for this part.
MI988F-1605
ActiveiBASE Technology
SBC 1 CORE 32GB/0GB RAM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MI988F-1605 |
|---|---|
| Core Processor | AMD Ryzen™ Embedded V1000B |
| Ethernet | GbE (2) |
| Expansion Site/Bus | Mini-PCIe, M.2 |
| Form Factor | mini-ITX |
| Number of Cores | 1 |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | 0 °C |
| RAM Capacity/Installed | 32 GB, 0 GB |
| RS-232 (422, 485) | 6 |
| Size / Dimension [x] | 169.92 mm |
| Size / Dimension [x] | 6.69 " |
| Size / Dimension [y] | 6.69 in |
| Size / Dimension [y] | 169.92 mm |
| Storage Interface | M.2, SATA III |
| USB | USB 3.1 (4) |
| Video Outputs | LVDS, eDP, Display Port, HDMI |
| Watchdog Timer | True |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 638.33 | |
Description
General part information
MI988F-1605

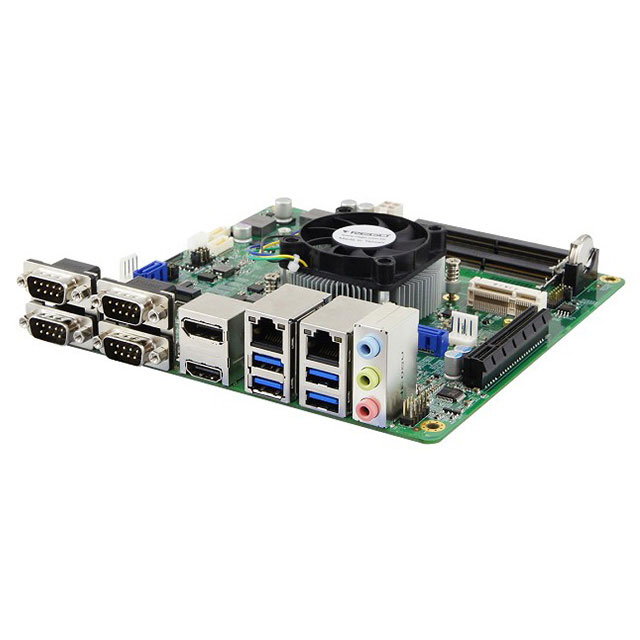

Single Board Computer 1 Core 32GB/0GB RAM AMD Ryzen™ Embedded V1000B
Documents
Technical documentation and resources
No documents available
