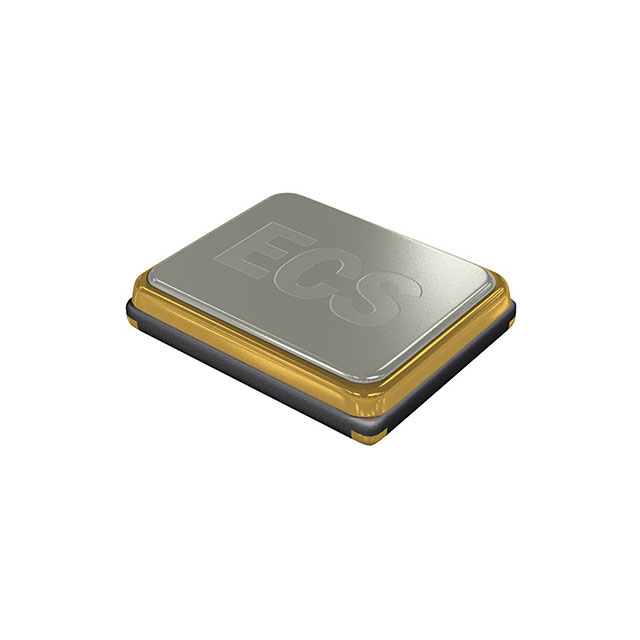

ECS-5032MV-500-BN-TR
ActiveECS Inc.
XTAL OSC XO 50MHZ HCMOS SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ECS-5032MV-500-BN-TR
ActiveECS Inc.
XTAL OSC XO 50MHZ HCMOS SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ECS-5032MV-500-BN-TR |
|---|---|
| Base Resonator | Crystal |
| Current - Supply (Disable) (Max) [Max] | 10 ÁA |
| Current - Supply (Max) [Max] | 8 mA |
| Frequency | 50 MHz |
| Frequency Stability | 50 ppm |
| Function | Enable/Disable |
| Height - Seated (Max) [Max] [z] | 1.3 mm |
| Height - Seated (Max) [Max] [z] | 0.051 in |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output | HCMOS |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension [x] | 0.197 in |
| Size / Dimension [x] | 5 mm |
| Size / Dimension [y] | 0.126 " |
| Size / Dimension [y] | 3.2 mm |
| Type | XO (Standard) |
| Voltage - Supply [Max] | 3.6 V |
| Voltage - Supply [Min] | 1.6 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.37 | |
| 10 | $ 1.18 | |||
| 50 | $ 1.06 | |||
| 100 | $ 1.02 | |||
| 500 | $ 0.92 | |||
| Digi-Reel® | 1 | $ 1.37 | ||
| 10 | $ 1.18 | |||
| 50 | $ 1.06 | |||
| 100 | $ 1.02 | |||
| 500 | $ 0.92 | |||
| Tape & Reel (TR) | 1000 | $ 0.79 | ||
| 3000 | $ 0.75 | |||
| 5000 | $ 0.72 | |||
| 10000 | $ 0.69 | |||
Description
General part information
ECS-5032MV-500-BN-TR
50 MHz XO (Standard) HCMOS Oscillator 1.6V ~ 3.6V Enable/Disable 4-SMD, No Lead
Documents
Technical documentation and resources
