SG-8018CG 59.370079M-TJHSA0

Active

EPSON

XTAL OSC XO 59.370079MHZ CMOS SM

Search across all available documentation for this part.

Active

EPSON

XTAL OSC XO 59.370079MHZ CMOS SM

Technical Specifications

Parameters and characteristics for this part

Specification	SG-8018CG 59.370079M-TJHSA0

Base Resonator	Crystal
Current - Supply (Disable) (Max) [Max]	1.1 µA
Current - Supply (Max) [Max]	8.1 mA
Frequency	59.37 MHz
Frequency Stability	50 ppm
Function	Standby (Power Down)
Height - Seated (Max) [Max] [z]	0.8 mm
Height - Seated (Max) [Max] [z]	0.031 "
Mounting Type	Surface Mount
Operating Temperature [Max]	105 ░C
Operating Temperature [Min]	-40 °C
Output	CMOS

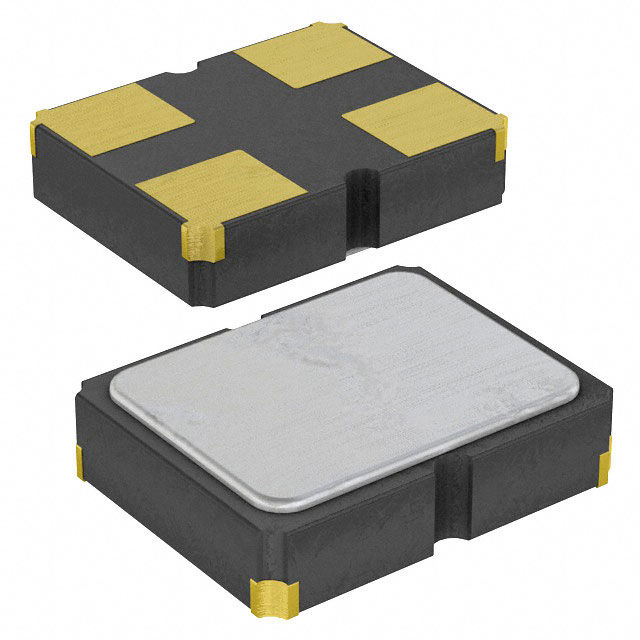

Package / Case	4-SMD, No Lead
Size / Dimension [x]	0.098 "
Size / Dimension [x]	2.5 mm
Size / Dimension [y]	2 mm
Size / Dimension [y]	0.079 in
Supplier Device Package	4-SMD (2.5x2)
Type	XO (Standard)
Voltage - Supply [Max]	3.63 V
Voltage - Supply [Min]	1.62 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

Digikey	Tape & Reel (TR)	1000	$ 0.56

General part information

59.37 MHz XO (Standard) CMOS Oscillator 1.62V ~ 3.63V Standby (Power Down) 4-SMD, No Lead
