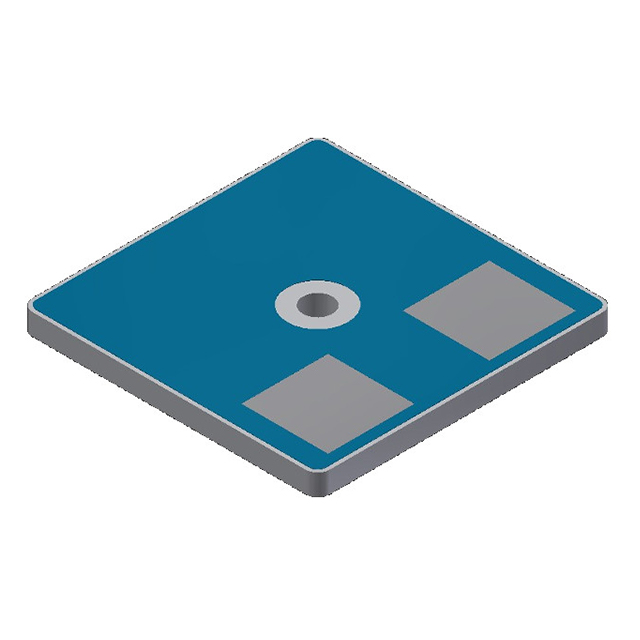

BAIR2-S-47R KTYN
ActiveSkenos Technologies, LLC
AL PLANAR 200W 47R 10% PWR RES
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
BAIR2-S-47R KTYN
ActiveSkenos Technologies, LLC
AL PLANAR 200W 47R 10% PWR RES
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | BAIR2-S-47R KTYN |
|---|---|
| Coating, Housing Type | Aluminum |
| Height - Seated (Max) [Max] [z] | 2.29 mm |
| Height - Seated (Max) [Max] [z] | 0.09 in |
| Lead Style | 0.25 in |
| Lead Style | 6.35 mm |
| Lead Style | Quick Connects |
| Operating Temperature [Max] | 155 °C |
| Operating Temperature [Min] | -55 °C |
| Power (Watts) | 200 W |
| Resistance | 47 Ohms |
| Size / Dimension [x] | 31.75 mm |
| Size / Dimension [x] | 1.25 " |
| Size / Dimension [y] | 1.25 in |
| Size / Dimension [y] | 31.75 mm |
| Temperature Coefficient | 700 ppm/°C |
| Tolerance | 10 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
BAIR2-S-47R KTYN
47 Ohms ±10% 200W Chassis Mount Resistor
Documents
Technical documentation and resources
