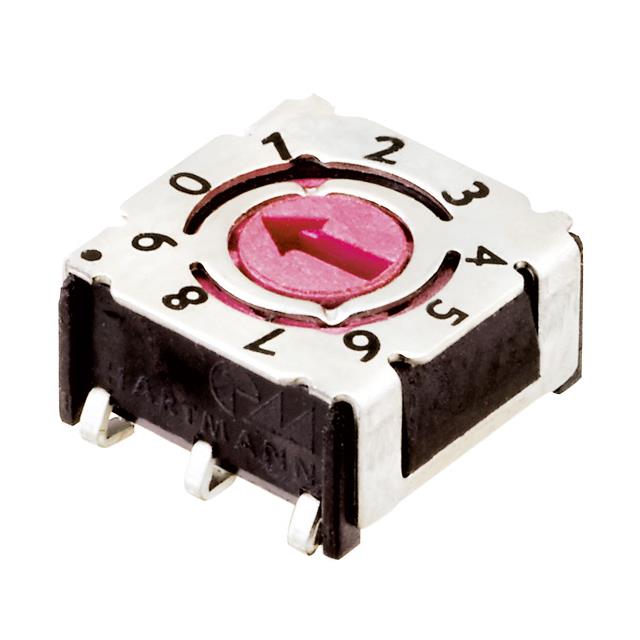

P36SMJ 101TR
ActivePTR HARTMANN
SWITCH ROTARY DIP BCD 10POS ARR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
P36SMJ 101TR
ActivePTR HARTMANN
SWITCH ROTARY DIP BCD 10POS ARR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | P36SMJ 101TR |
|---|---|
| Actuator Level | Flush, Recessed |
| Actuator Type | Rotary for Tool |
| Circuit | BCD |
| Contact Finish | Gold |
| Current Rating (Amps) | 100 mA |
| Height Above Board | 0.154 in |
| Height Above Board | 3.9 mm |
| Length [x] | 0.291 in |
| Length [x] | 7.4 mm |
| Mechanical Life | 25000 Steps |
| Mounting Type | Surface Mount |
| Number of Positions | 10 |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -50 °C |
| Pitch | Full |
| Pitch [x] | 0.1 in |
| Pitch [x] | 2.54 mm |
| Termination Style | J Lead |
| Voltage Rating | 42 VDC |
| Washable | True |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 1300 | $ 2.40 | |
| 2600 | $ 2.18 | |||
Description
General part information
P36SMJ 101TR
Dip Switch BCD 10 Position Surface Mount Rotary for Tool Actuator 100mA 42VDC
