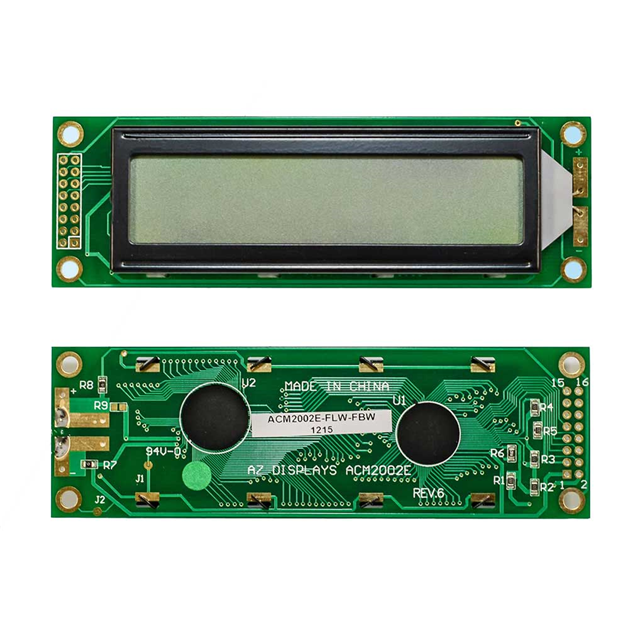

ACM2002E-ML-YBS

Active

AZ Displays

20X2 CHARACTER LCD TRANSMISSIVE

Search across all available documentation for this part.

Active

AZ Displays

20X2 CHARACTER LCD TRANSMISSIVE

Technical Specifications

Parameters and characteristics for this part

Specification	ACM2002E-ML-YBS

Backlight	LED
Character Format [x]	5 Dots
Character Format [y]	8 Dots
Character Size [y]	3.2 mm
Character Size [z]	5.55 mm
Controller Type	SPLC780D
Display Format [x]	20
Display Format [y]	2
Display Mode	Transmissive
Display Type	STN - Super-Twisted Nematic, TN - Twisted Nematic
Dot Size [custom]	0.65 mm
Dot Size [custom]	0.6 mm
Operating Temperature [Max]	70 °C
Operating Temperature [Min]	-20 C
Outline L x W x H [x]	116 mm
Outline L x W x H [y]	37 mm
Outline L x W x H [z]	13.5 mm
Viewing Area [x]	83 mm
Viewing Area [y]	18.6 mm
Voltage - Supply [Max]	5.5 V
Voltage - Supply [Min]	2.7 V

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

Distributor	Package	Quantity	$

General part information

Character Display Module Transmissive 5 x 8 Dots STN - Super-Twisted Nematic, TN - Twisted Nematic LED 116.00mm x 37.00mm x 13.50mm
