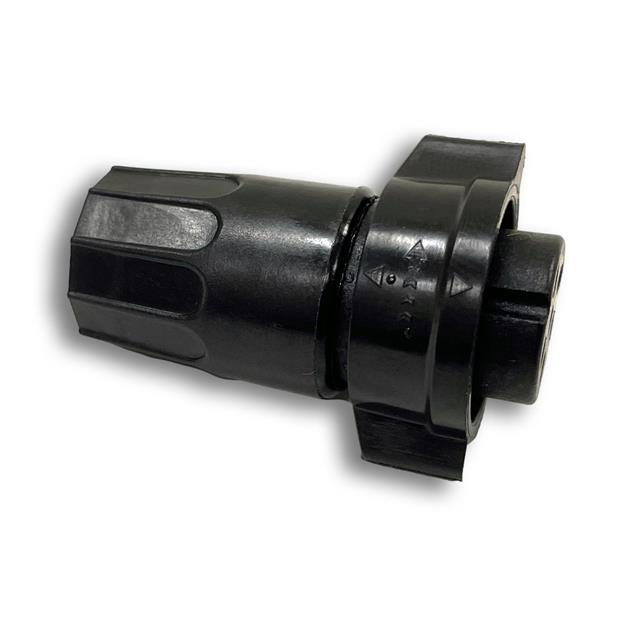

W3282-8SG-P-3DC
ActiveConxall/Switchcraft
MULTI-CON-X INSTA-CLICK CABLE SK
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
W3282-8SG-P-3DC
ActiveConxall/Switchcraft
MULTI-CON-X INSTA-CLICK CABLE SK
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | W3282-8SG-P-3DC |
|---|---|
| Backshell Material, Plating | Thermoplastic |
| Color | Black |
| Connector Type | Female Sockets, Plug |
| Contact Finish - Mating | Gold |
| Contact Material | Copper Alloy |
| Current Rating (Amps) | Varies by Wire Gauge |
| Fastening Type | Bayonet Lock |
| Features | UV Resistant, Backshell |
| Ingress Protection | IP67 - Dust Tight, Waterproof |
| Insert Material | Thermoplastic |
| Material Flammability Rating | UL94 HB |
| Mounting Type | Free Hanging (In-Line) |
| Number of Positions | 8 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Orientation | Keyed |
| Primary Material | Plastic |
| Shielding | Unshielded |
| Voltage Rating | 600 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 100 | $ 19.05 | |
Description
General part information
W3282-8SG-P-3DC
8 Position Circular Connector Plug, Female Sockets Solder Cup
