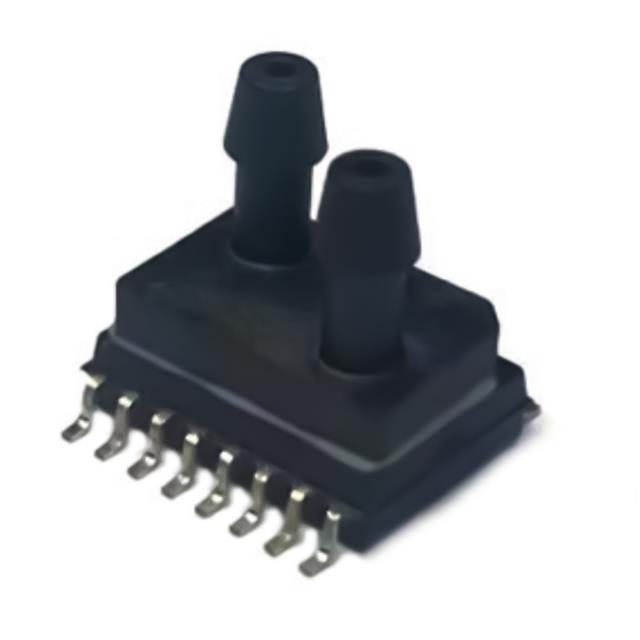

MCT-9543 VBDJ001PSB31I1
ActiveAdvanced Sensor Design
SENSOR 1PSID 0.12" 14BIT 16SOIC
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MCT-9543 VBDJ001PSB31I1 |
|---|---|
| Accuracy | 1 % |
| Applications | Board Mount |
| Features | Digital Output, Temperature Compensated |
| Maximum Pressure | 21 kPa |
| Maximum Pressure | 3 PSI |
| Mounting Type | Surface Mount |
| Operating Pressure | 6.89 kPa |
| Operating Pressure | 1 PSI |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -20 C |
| Output | 14 b |
| Output Type | I2C |
| Package / Case | 16-SOIC Module, Dual Top Ports |
| Port Size | 0.12 " |
| Port Size | Male, Tube, Dual |
| Port Size | 3 mm |
| Port Style | Barbed |
| Pressure Type | Differential |
| Supplier Device Package | SOIC-16 |
| Termination Style | Gull Wing |
| Voltage - Supply [Max] | 3.465 V |
| Voltage - Supply [Min] | 3.135 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 48.00 | |
Description
General part information
MCT-9543 VBDJ001PSB31I1
Pressure Sensor 1PSI (6.89kPa) Differential Male - 0.12" (3mm) Tube, Dual 14b 16-SOIC Module, Dual Top Ports
