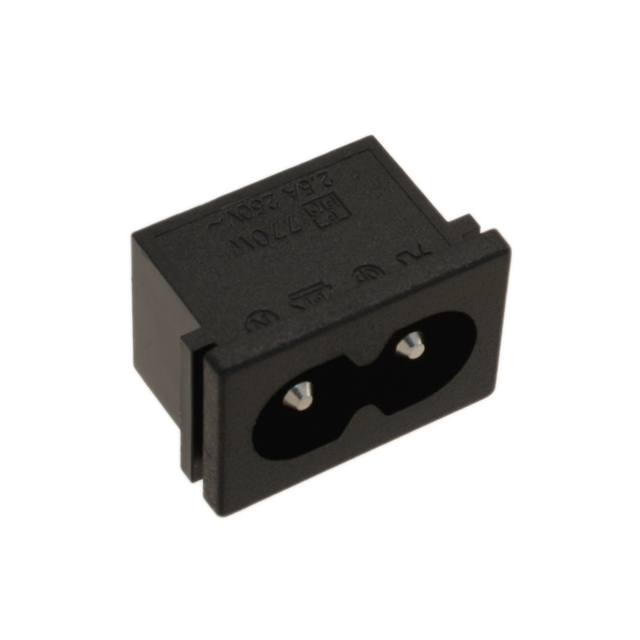

770W-X2/10 - 770W-X2/10

770W-X2/10

Active
Qualtek

PWR ENT RCPT IEC320-C8 PNL SLDR

Deep-Dive with AI

Search across all available documentation for this part.

DocumentsDatasheetIEC Connector Designations
770W-X2/10 - 770W-X2/10

770W-X2/10

Active
Qualtek

PWR ENT RCPT IEC320-C8 PNL SLDR

Deep-Dive with AI

DocumentsDatasheetIEC Connector Designations

Technical Specifications

Parameters and characteristics for this part

Specification770W-X2/10
Accomodates a FuseFalse
Approval AgencyUL, VDE, CSA
Connector StyleNon-Polarized, IEC 320-C8
Connector TypeReceptacle, Male Pins
Current Rating - Appliance Inlet2.5 A
Filter TypeUnfiltered - Commercial
Mounting TypeThrough Hole, Right Angle, Panel Mount, Snap-In
Number of Positions2
Panel Thickness0.063 in
Panel Thickness1.6 mm
TerminationSolder
Voltage Rating - Appliance Inlet250 VAC

Pricing

Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly

DistributorPackageQuantity$
DigikeyBulk 1$ 1.48
10$ 1.13
25$ 1.01
50$ 0.94
100$ 0.87
250$ 0.78
500$ 0.73
1000$ 0.68
2500$ 0.63
LCSCPiece 1$ 1.75
200$ 0.70
500$ 0.67
1000$ 0.66

Description

General part information

770W-X2/10

Power Entry Connector Receptacle, Male Pins IEC 320-C8, Non-Polarized Panel Mount, Snap-In; Through Hole, Right Angle

Documents

Technical documentation and resources

Datasheet

Datasheet

IEC Connector Designations

Related Document
