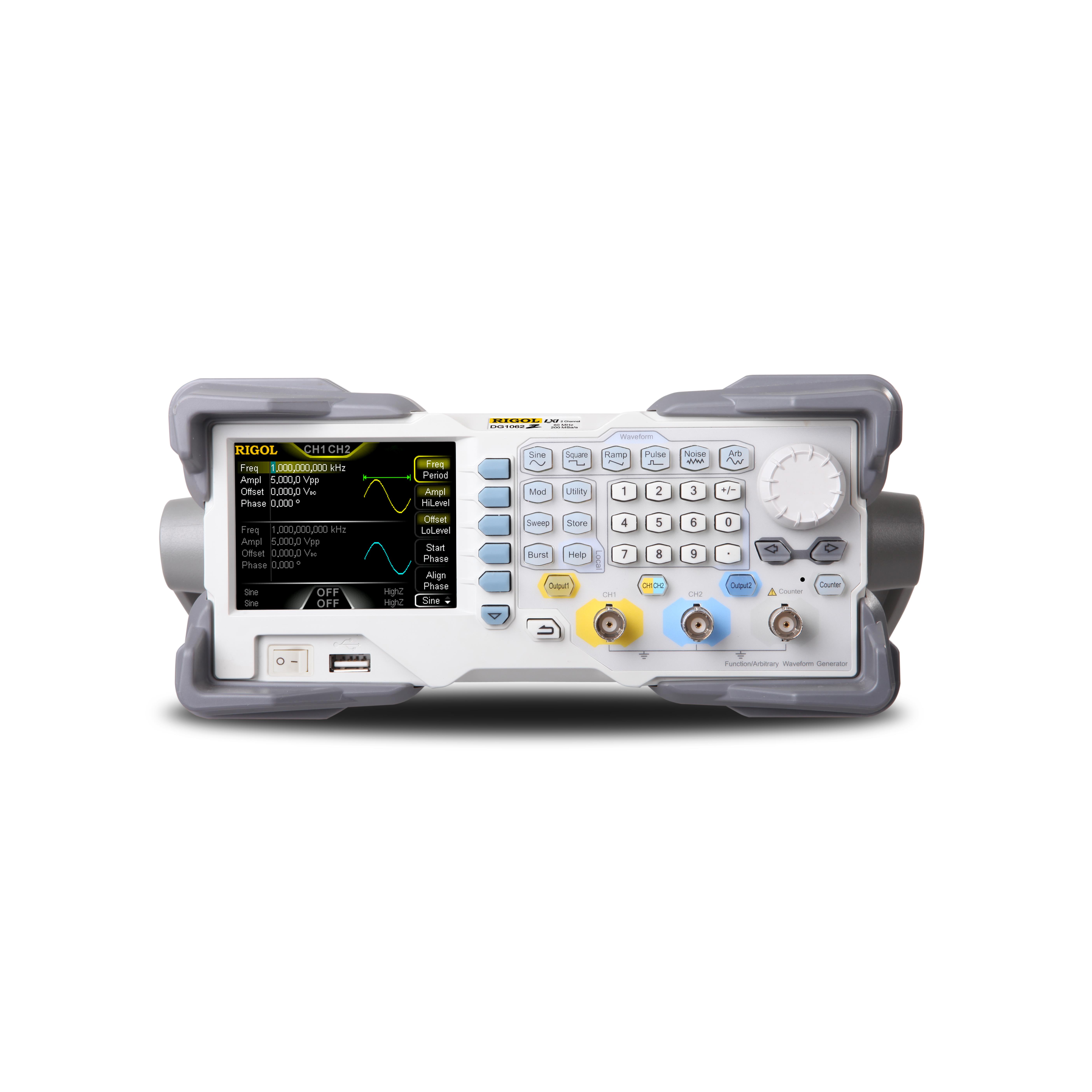

DG1032Z
ActiveRIGOL Technologies, Inc
30 MHZ, 2 CH, 200MS/S WAVEFORM G
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
DG1032Z
ActiveRIGOL Technologies, Inc
30 MHZ, 2 CH, 200MS/S WAVEFORM G
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | DG1032Z |
|---|---|
| Display Type | TFT - Color LCD |
| Frequency - Max [Max] | 30 MHz |
| Function | Sweep, Arbitrary |
| Number of Channels [custom] | 2 |
| Signal Types | Sine, Ramp, Square, Pulse |
| Supply Voltage [Max] | 240 V |
| Supply Voltage [Min] | 100 V |
| Type | Function Generator |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Box (TB) | 1 | $ 524.00 | |
Description
General part information
DG1032Z
30 MHz Arbitrary, Sweep Function Generator 2 Channel Sine, Square, Ramp, Pulse Display Type TFT - Color LCD
