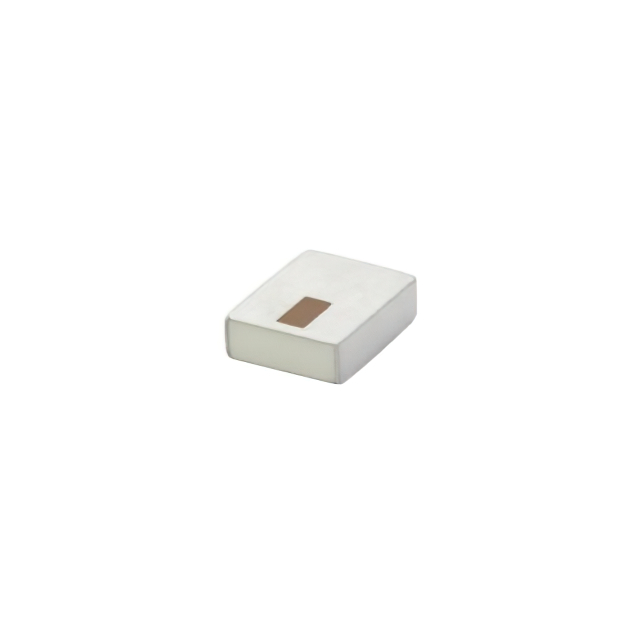

BFCQ-1162+
ActiveMINI-CIRCUITS
50Ω 11.6GHZ SMD-3P,2.5X2MM CERAMIC FILTERS ROHS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
BFCQ-1162+
ActiveMINI-CIRCUITS
50Ω 11.6GHZ SMD-3P,2.5X2MM CERAMIC FILTERS ROHS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | BFCQ-1162+ |
|---|---|
| Bandwidth | 2 GHz |
| Filter Type | Band Pass |
| Frequency | 11.6 GHz |
| Height (Max) | 0.032 in |
| Height (Max) | 0.81 mm |
| Impedance | 50 Ohms |
| Insertion Loss | 3 dB |
| Mounting Type | Surface Mount |
| Package / Case | 3-SMD, No Lead |
| Size / Dimension [x] | 0.098 " |
| Size / Dimension [x] | 2.5 mm |
| Size / Dimension [y] | 2 mm |
| Size / Dimension [y] | 0.079 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
BFCQ-1162+
11.6GHz Center Band Pass Ceramic Filter 2 GHz 50Ohm 3-SMD, No Lead
