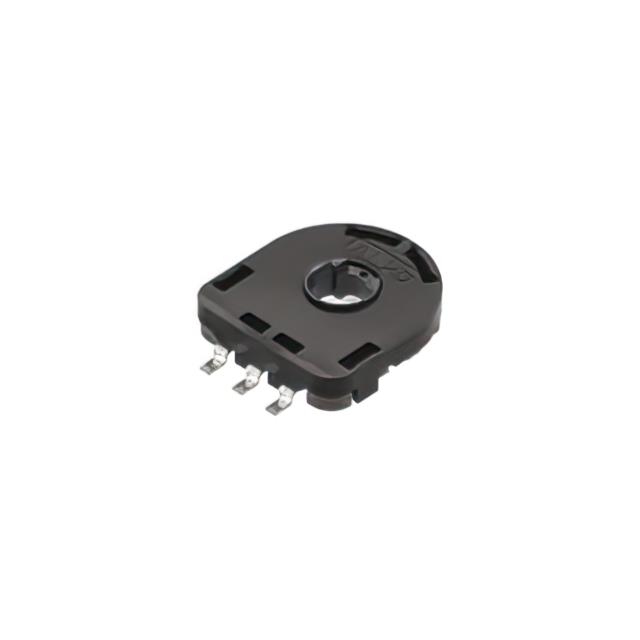

RDC503052A
ActiveAlps Alpine
RESISTIVE POSITION SENSORS ROTAR
Deep-Dive with AI
Search across all available documentation for this part.
RDC503052A
ActiveAlps Alpine
RESISTIVE POSITION SENSORS ROTAR
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | RDC503052A |
|---|---|
| Actuator Type | Hole for Shaft |
| For Measuring | Rotary Position |
| Linearity | 2 % |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 120 °C |
| Operating Temperature [Min] | -40 °C |
| Output | Analog Voltage |
| Package / Case | 4-SMD, Gull Wing |
| Resistance | 10000 Ohms |
| Resistance Tolerance | 30 % |
| Supplier Device Package | 4-SMD |
| Technology | Resistive |
| Termination Style | SMD (SMT) Tab |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.44 | |
| 10 | $ 1.88 | |||
| 25 | $ 1.57 | |||
| 50 | $ 1.53 | |||
| 100 | $ 1.39 | |||
| 500 | $ 1.22 | |||
| 1000 | $ 1.08 | |||
| Digi-Reel® | 1 | $ 2.44 | ||
| 10 | $ 1.88 | |||
| 25 | $ 1.57 | |||
| 50 | $ 1.53 | |||
| 100 | $ 1.39 | |||
| 500 | $ 1.22 | |||
| 1000 | $ 1.08 | |||
| Tape & Reel (TR) | 3900 | $ 1.05 | ||
| 7800 | $ 0.98 | |||
Description
General part information
RDC503052A
Resistive Sensor Rotary Position Hole for Shaft SMD (SMT) Tab
Documents
Technical documentation and resources
No documents available
