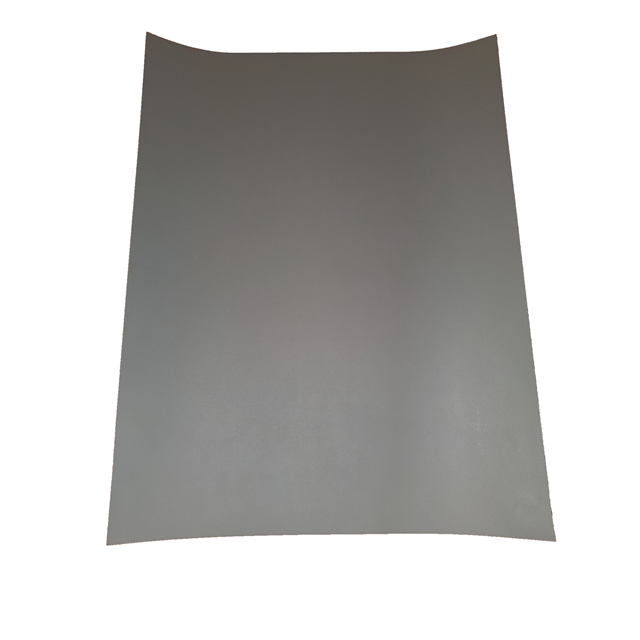

PCS06-SF.20-TC3.0-SIL1
ActiveTimtel Thermal
THERM FILM 215.9 X 279.4 DK GRAY
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
PCS06-SF.20-TC3.0-SIL1
ActiveTimtel Thermal
THERM FILM 215.9 X 279.4 DK GRAY
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PCS06-SF.20-TC3.0-SIL1 |
|---|---|
| Adhesive | Tacky - One Side |
| Backing, Carrier | Fiberglass |
| Color | Dark Gray |
| Material | Silicone |
| Outline [x] | 215.9 mm |
| Outline [y] | 279.4 mm |
| Shape | Rectangular |
| Thermal Conductivity | 3 W/m-K |
| Thickness | 0.23 mm |
| Thickness | 0.0091 in |
| Type | Thermal Film, Sheet |
| Usage | Thermally Conductive |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 59.96 | |
| 10 | $ 50.47 | |||
| 25 | $ 45.61 | |||
| 50 | $ 42.36 | |||
| 100 | $ 39.12 | |||
Description
General part information
PCS06-SF.20-TC3.0-SIL1
Thermal Pad Dark Gray 215.90mm x 279.40mm Rectangular Tacky - One Side
