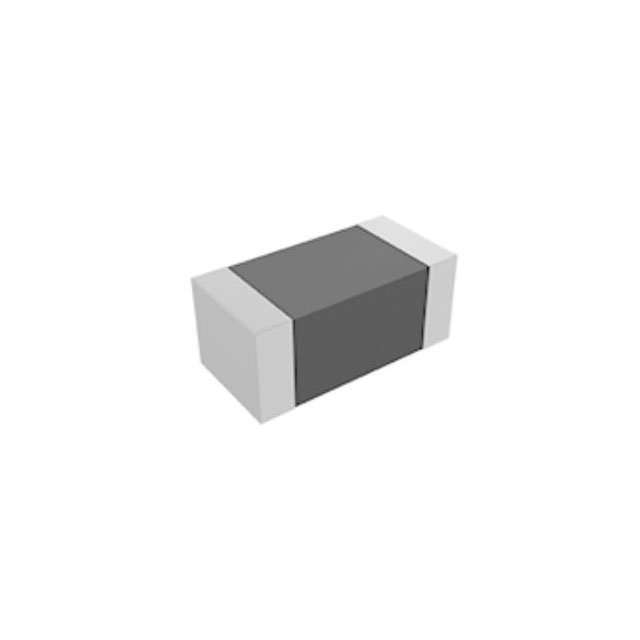

SDFL1608LR18MTF
ActiveShenzhen Sunlord Electronics Co., Ltd.
FIXED IND 180NH 50MA 600MOHM SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SDFL1608LR18MTF
ActiveShenzhen Sunlord Electronics Co., Ltd.
FIXED IND 180NH 50MA 600MOHM SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SDFL1608LR18MTF |
|---|---|
| Current Rating (Amps) | 50 mA |
| Frequency - Self Resonant | 165 MHz |
| Height - Seated (Max) [Max] [z] | 0.037 " |
| Height - Seated (Max) [Max] [z] | 0.95 mm |
| Inductance | 180 nH |
| Inductance Frequency - Test | 25 MHz |
| Material - Core | Ferrite |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 0603 (1608 Metric) |
| Q @ Freq | 15, 25 MHz |
| Shielding | Shielded |
| Size / Dimension [x] | 0.063 in |
| Size / Dimension [x] | 1.6 mm |
| Size / Dimension [y] | 0.8 mm |
| Size / Dimension [y] | 0.031 in |
| Tolerance | 20 % |
| Type | Multilayer |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 4000 | $ 0.04 | |
Description
General part information
SDFL1608LR18MTF
180 nH Shielded Multilayer Inductor 50 mA 600mOhm Max 0603 (1608 Metric)
