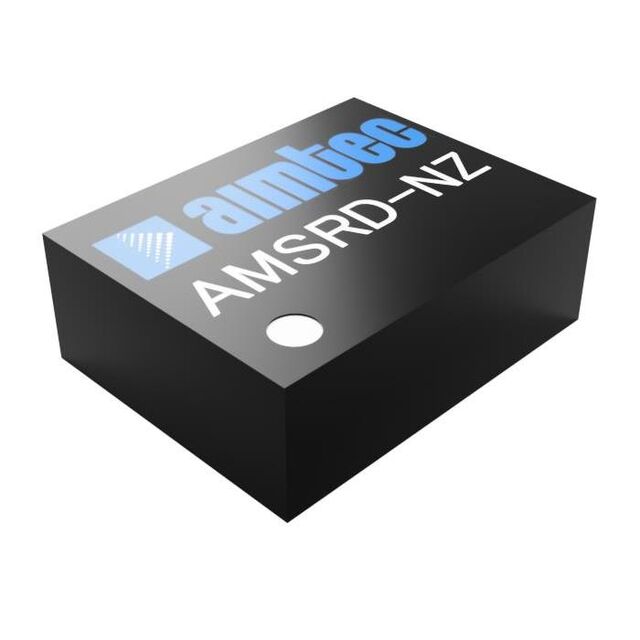

AMSRD-12SNZ
ActiveDComponents
DC/DC CONVERTER 3.3V 1W
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AMSRD-12SNZ
ActiveDComponents
DC/DC CONVERTER 3.3V 1W
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AMSRD-12SNZ |
|---|---|
| Applications | ITE (Commercial) |
| Control Features | Active High, Enable |
| Current - Output (Max) | 500 mA, 150 mA |
| Efficiency | 92 % |
| Features | Remote On/Off, Adjustable Output |
| Mounting Type | Surface Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 105 C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 6-SMD Module |
| Power (Watts) | 6 W |
| Size / Dimension [x] | 0.35 in |
| Size / Dimension [x] | 9 mm |
| Size / Dimension [y] | 0.28 in |
| Size / Dimension [y] | 7 mm |
| Size / Dimension [z] | 0.12 in |
| Size / Dimension [z] | 3.1 mm |
| Standard Number | 62368-1 |
| Type | Non-Isolated PoL Module |
| Voltage - Input (Max) [Max] | 36 V, 24 V |
| Voltage - Input (Min) [Min] | 15 V, 8 V |
| Voltage - Output 1 | -12 V, 12 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 1 | $ 1.90 | |
| 25 | $ 1.86 | |||
| 50 | $ 1.83 | |||
| 100 | $ 1.79 | |||
| 200 | $ 1.75 | |||
| 400 | $ 1.72 | |||
Description
General part information
AMSRD-12SNZ
Non-Isolated PoL Module DC DC Converter 1 Output 12V, -12V 500mA, 150mA 8V, 15V - 24V, 36V Input
