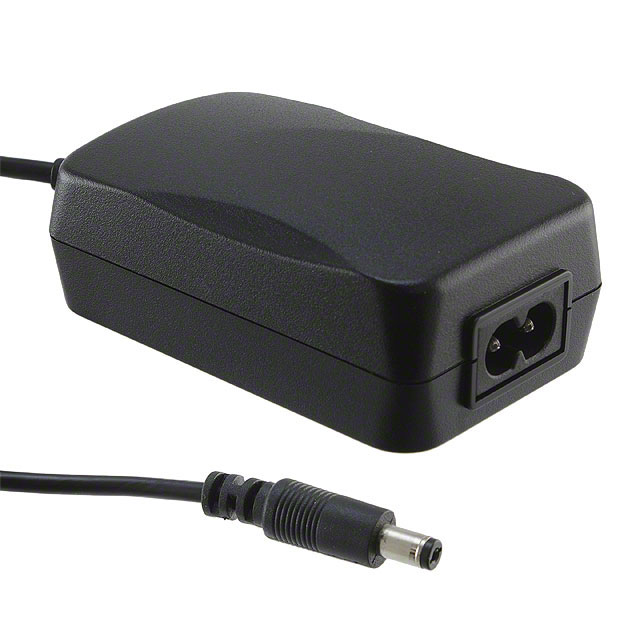

PSAA15W-240L6
ObsoletePhihong USA
AC/DC DESKTOP ADAPTER 24V 15W
Deep-Dive with AI
Search across all available documentation for this part.
PSAA15W-240L6
ObsoletePhihong USA
AC/DC DESKTOP ADAPTER 24V 15W
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | PSAA15W-240L6 |
|---|---|
| Applications | ITE (Commercial) |
| Approval Agency | CE, CB, cULus |
| Cord Length | 1.5 m |
| Cord Length | 59 in |
| Current - Output (Max) [Max] | 630 mA |
| Efficiency | Level VI |
| Form | Desktop (Class II) |
| Input Connector | IEC 320-C8 |
| Input Type | Cord |
| No Load Power Consumption | 250 mW |
| Operating Temperature [Max] | 40 °C |
| Operating Temperature [Min] | 0 °C |
| Output Connector | Barrel Plug |
| Output Connector [diameter] | 2.1 mm, 5.5 mm |
| Output Connector [x] | 9.5 mm |
| Polarization | Positive Center |
| Power (Watts) | 15 W |
| Region Utilized | International |
| Size / Dimension [x] | 3.2 " |
| Size / Dimension [x] | 81.2 mm |
| Size / Dimension [y] | 1.97 " |
| Size / Dimension [y] | 50 mm |
| Size / Dimension [z] | 29.8 mm |
| Size / Dimension [z] | 1.17 in |
| Voltage - Input [Max] | 264 VAC |
| Voltage - Input [Min] | 90 VAC |
| Voltage - Output | 24 V |
| Weight | 140 g |
| Weight | 4.94 oz |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 11.04 | |
Description
General part information
PSAA15W-240L6
24V 15 W AC/DC External Desktop (Class II) Adapter Cord (Sold Separately) Input
