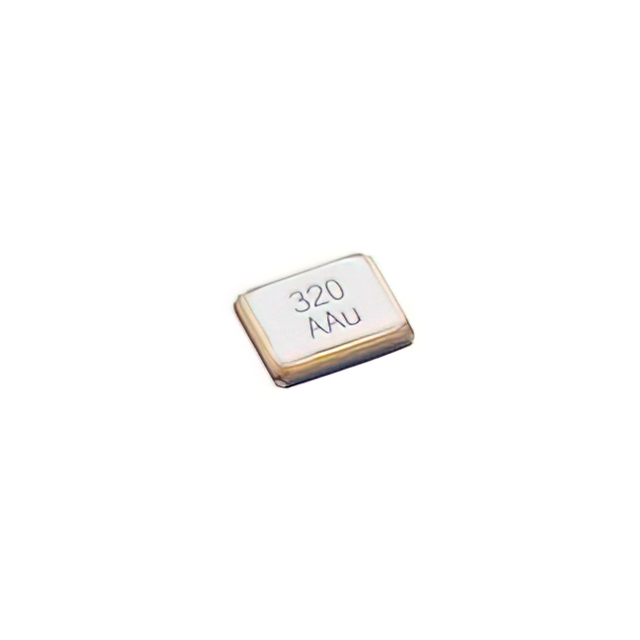

C2E-12.000-8-2050-A-X1-R
ActiveAker Technology Corp
CRYSTAL 12MHZ 8PF SMD AEC-Q200
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | C2E-12.000-8-2050-A-X1-R |
|---|---|
| ESR (Equivalent Series Resistance) | 200 Ohm |
| Frequency | 12 MHz |
| Frequency Stability | 50 ppm |
| Frequency Tolerance | 20 ppm |
| Height - Seated (Max) [Max] | 0.026 in |
| Height - Seated (Max) [Max] | 0.65 mm |
| Load Capacitance | 8 pF |
| Mounting Type | Surface Mount |
| Operating Mode | Fundamental |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 4-SMD, No Lead |
| Ratings | AEC-Q200 |
| Size / Dimension [x] | 0.098 " |
| Size / Dimension [x] | 2.5 mm |
| Size / Dimension [y] | 2 mm |
| Size / Dimension [y] | 0.079 in |
| Type | MHz Crystal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.81 | |
| 10 | $ 0.71 | |||
| 50 | $ 0.67 | |||
| 100 | $ 0.59 | |||
| 500 | $ 0.56 | |||
| Digi-Reel® | 1 | $ 0.81 | ||
| 10 | $ 0.71 | |||
| 50 | $ 0.67 | |||
| 100 | $ 0.59 | |||
| 500 | $ 0.56 | |||
| Tape & Reel (TR) | 1000 | $ 0.47 | ||
| 3000 | $ 0.45 | |||
| 5000 | $ 0.43 | |||
| 10000 | $ 0.42 | |||
Description
General part information
C2E-12.000-8-2050-A-X1-R
12 MHz ±20ppm Crystal 8pF 200 Ohms 4-SMD, No Lead
